SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

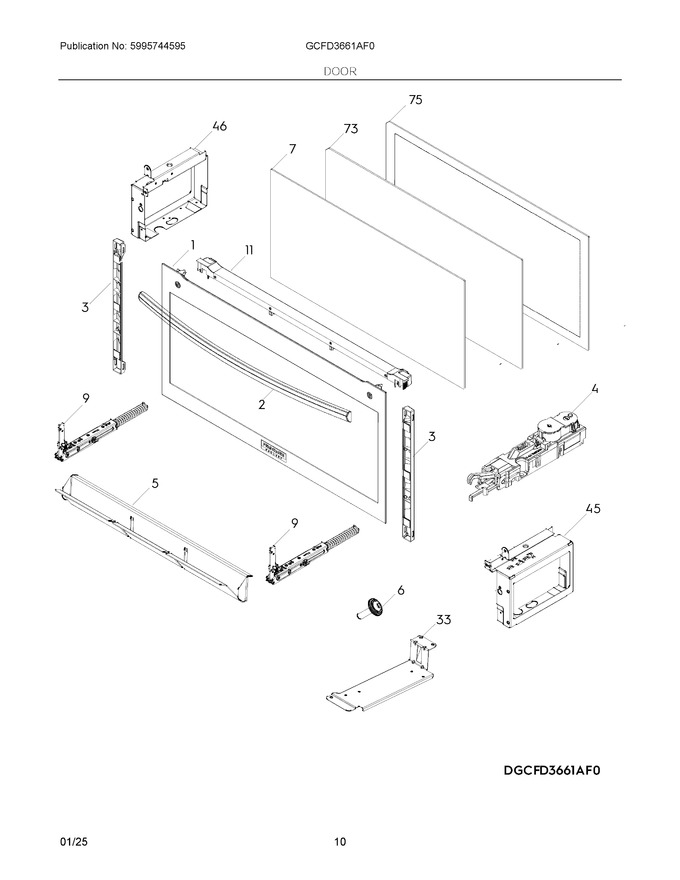

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536198		Door, Complete, Stainless				$ 617.33
2	5304536199		Handle, Door, Assembly		Appelez-nous	-
3	5304536200		Trim, Door Back, Assembly		Appelez-nous	-
4	5304536188		Door, Lock, Global		Appelez-nous	-
5	140259970022		Spacer, Door Glass   (Replaces: 5304536202)		Appelez-nous	-
6	5612311166		Screw, T20 Pan, M4 X 16, Handle		Appelez-nous	-
7	5304536201		Glass, Inner Door				$ 429.13
9	5304536169		Hinge, Gl 15kg, Door		Appelez-nous	-
11	5304536203		Trim, Door Vent, Top		Appelez-nous	-
33	140195734011		Bracket, Door Lock, Mount		Appelez-nous	-
45	140226412017		Hinge, Receiver, Rh		Appelez-nous	-
46	140226412025		Hinge, Receiver, Lh		Appelez-nous	-
73	140061702019		Glass, Door, Mid		Appelez-nous	-
75	140026687016		Glass, Door, Oven				$ 133.21
NI	85801500052716		Screw, Ph2 Hex 1/4, M4 X 5, Black, Door Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
