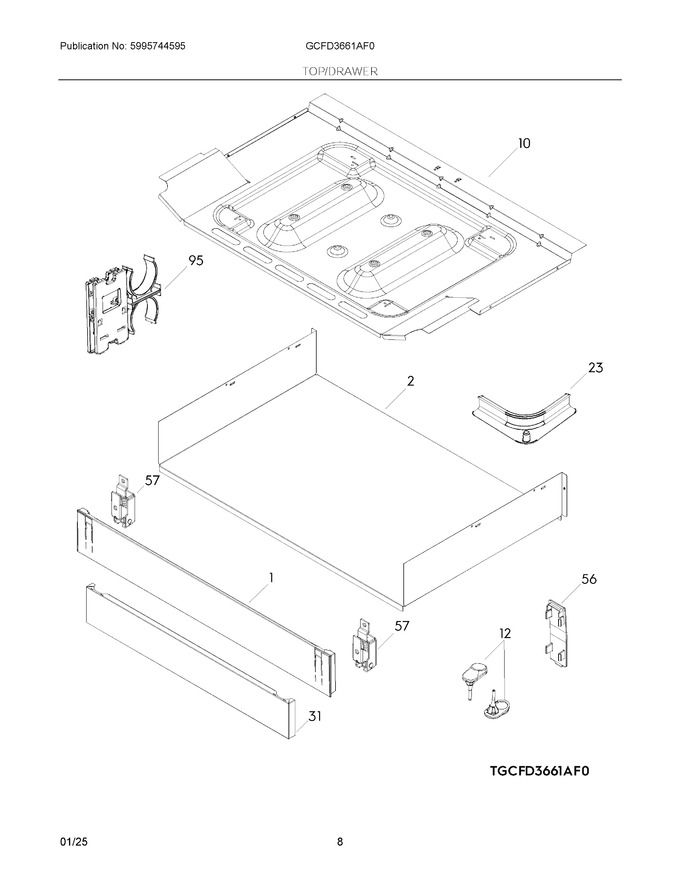

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304536204 | Door, Complete, Storage |
|
Immediately | $ 173.65 | ||||
| 2 | 00380096719 | Panel, Storage, Drawer |
|
- | |||||
| 10 | 5304536181 | Panel, Storage, Drawer |
|
- | |||||
| 12 | 05890010431 | Bumper, Storage Door |
|
- | |||||
| 23 | 140074187018 | Cover, Storage Door, Corner |
|
- | |||||
| 31 | 5304536210 | Panel, Plinth, 90cm |
|
$ 119.71 | |||||
| 56 | 85800070092946 | Cap, Storage Door |
|
- | |||||
| 57 | 85800450033197 | Hinge, Storage Door |
|
- | |||||
| 95 | 140169115015 | Clip, Plinth |
|
$ 102.25 | |||||
| NI | 4055541587 | Cable Tie, Plt1m-m30 |
|
- | |||||
| NI | 4055563078 | Screw #8, Tx20 |
|
- |
