01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

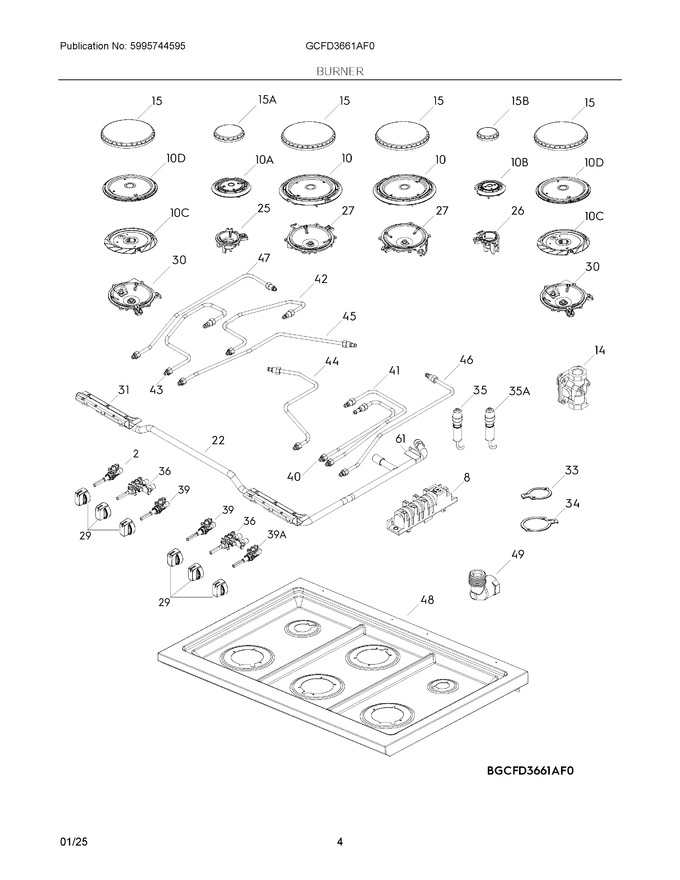

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304505690		Valve, Saddle, 850 Btu, Green Stem			Immediately	$ 69.77
8	5304537114		Module, Spark, 6 Outputs   (Replaces: 5304505696)			Immediately	$ 47.88
10	5304537946		Crown, Burner, Xtra Large   (Replaces: 5304533594)			Immediately	$ 21.09
14	5304509817		Regulator, Pressure		Appelez-nous	-
15	5304533597		Cap, Burner, Xtra Large			Immediately	$ 46.36
22	5304536248		Pipe, Manifold		Appelez-nous	-
25	5304536243		Ignitor, Vesta Med, Assembly		Appelez-nous	-
26	5304536244		Ignitor, Vesta Small, Assembly		Appelez-nous	-
27	5304536245		Burner, Assembly, Xlarge		Appelez-nous	-
29	5304536195		Knob, Assembly		Appelez-nous	-
30	5304536246		Orifice Holder, Assembly, 18k		Appelez-nous	-
31	5304536247		Bracket, Gas Rail, 6 Burner		Appelez-nous	-
33	5304536229		Seal, Gasket, Burner		Appelez-nous	-
34	5304536230		Seal, Gasket, Small, Burner		Appelez-nous	-
35	5304536233		Spark Plug, 540mm		Appelez-nous	-
36	5304536249		Gas Valve, Dual Enterprise, Burner		Appelez-nous	-
39	5304536250		Gas Tap, 2000		Appelez-nous	-
40	5304536235		Tube, Gas Burner, Outer Rf		Appelez-nous	-
41	5304536236		Tube, Gas Burner, Inner Rf		Appelez-nous	-
42	5304536237		Tube, Gas Burner, Outer Lf		Appelez-nous	-
43	5304536238		Tube, Gas Burner, Inner Lf		Appelez-nous	-
44	5304536239		Tube, Gas Burner, Mf		Appelez-nous	-
45	5304536240		Tube, Gas Burner, Mr		Appelez-nous	-
46	5304536241		Tube, Gas Burner, Rr		Appelez-nous	-
47	5304536242		Tube, Gas Burner, Lr		Appelez-nous	-
48	5304536252		Hob, Assembly, 6 Burner			Immediately	$ 508.71
49	5304536205		Fitting Elbow, 1/2''		Appelez-nous	-
61	140033817010		Spring, Hob, Burner		Appelez-nous	-
10A	5304537945		Crown, Burner, Medium   (Replaces: 5304533593)				$ 11.17
10B	5304537944		Crown, Burner, Small   (Replaces: 5304533592)			Immediately	$ 8.56
10C	5304537510		Burner, Double, 18k, Bottom   (Replaces: 5304535123)			Immediately	$ 171.56
10D	140202433011		Burner, Double, 18k, Top   (Replaces: 5304535122)			Immediately	$ 158.99
15A	5304533596		Cap, Burner, Medium			Immediately	$ 32.66
15B	5304533595		Cap, Burner, Small			Immediately	$ 28.92
35A	5304536234		Spark Plug, 840mm		Appelez-nous	-
39A	5304536251		Gas Tap, 500		Appelez-nous	-
NI	8583053386022		Screw, M4x8, Phil		Appelez-nous	-
NI	5304536232		Screw, 2.9x13		Appelez-nous	-
NI	8583053385016		Screw, M4x16		Appelez-nous	-
NI	5304533818		Cable Tie, Push Mount, Black		Appelez-nous	-
NI	5304536253		Lp Conversion Kit, W/instructions				$ 56.20
NI	5304536231		Harness, Backlit, Burner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
