01 - Cover Sheet

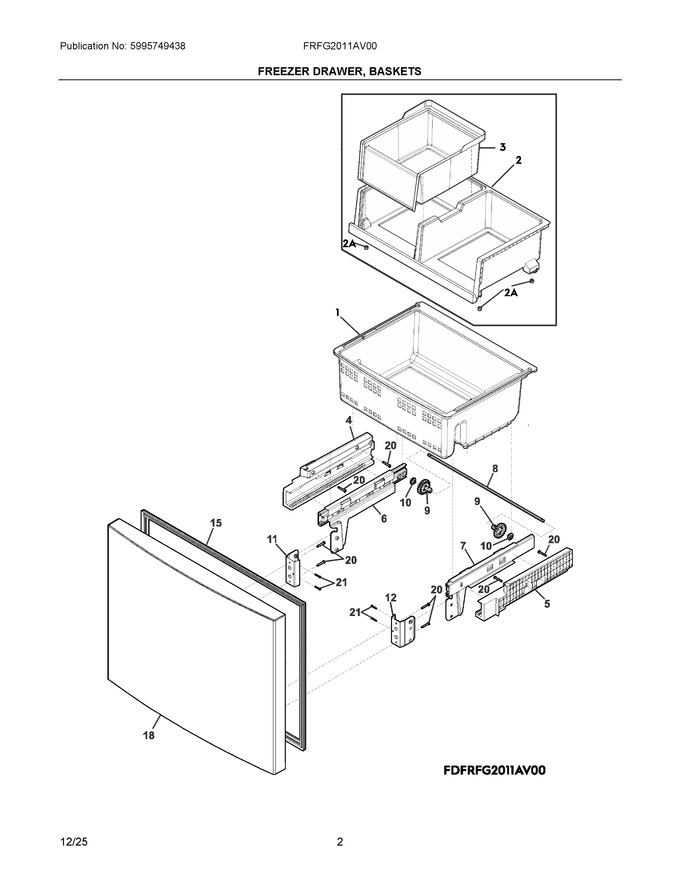

02 - Freezer Drawer, Baskets
03 - Fresh Food Door
04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Water Dispenser
08 - Ice Maker
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140053633057 | Lower Drawer, Freezer, Assembly |
|
$ 103.39 | |||||
| 2 | 140288981016 | Upper Drawer, Freezer |
|
$ 125.13 | |||||
| 3 | 140288982014 | Ice Container, Bucket |
|
- | |||||
| 4 | 140291865016 | Slider, Support, Lower Basket, Left |
|
$ 11.37 | |||||
| 5 | 140291865024 | Slider, Support, Lower Basket, Right |
|
$ 11.37 | |||||
| 6 | 5304529169 | Slider Assembly, Telescopic, Lh |
|
$ 202.94 | |||||
| 7 | 5304529170 | Slider Assembly, Telescopic, Rh |
|
$ 202.99 | |||||
| 8 | 140020925040 | Shaft, Telescopic Rail |
|
- | |||||
| 9 | 140025649017 | Gear, Pinion (Replaces: 5304524001) |
|
Immediately | $ 4.58 | ||||
| 10 | 5304529172 | Pad, Bearing, Pinion |
|
$ 7.59 | |||||
| 11 | 5304529176 | Bracket, Adjustment, Lh, Drawer |
|
$ 36.41 | |||||
| 12 | 5304529175 | Bracket, Adjustment, Rh, Drawer |
|
$ 34.89 | |||||
| 15 | 4055727905 | Gasket, Freezer Door, Magnet |
|
$ 69.90 | |||||
| 18 | 140296276029 | Door Assembly, Freezer, Stainless |
|
$ 218.16 | |||||
| 20 | 5304529166 | Screw, Phil Ph, 10g X 32mm, Typ B |
|
$ 6.11 | |||||
| 2A | 5304519055 | Roller, Drawer |
|
- | |||||
| NIA | 5304519066 | Screw, Phil Pn Hd, M4 X 8 |
|
- |
