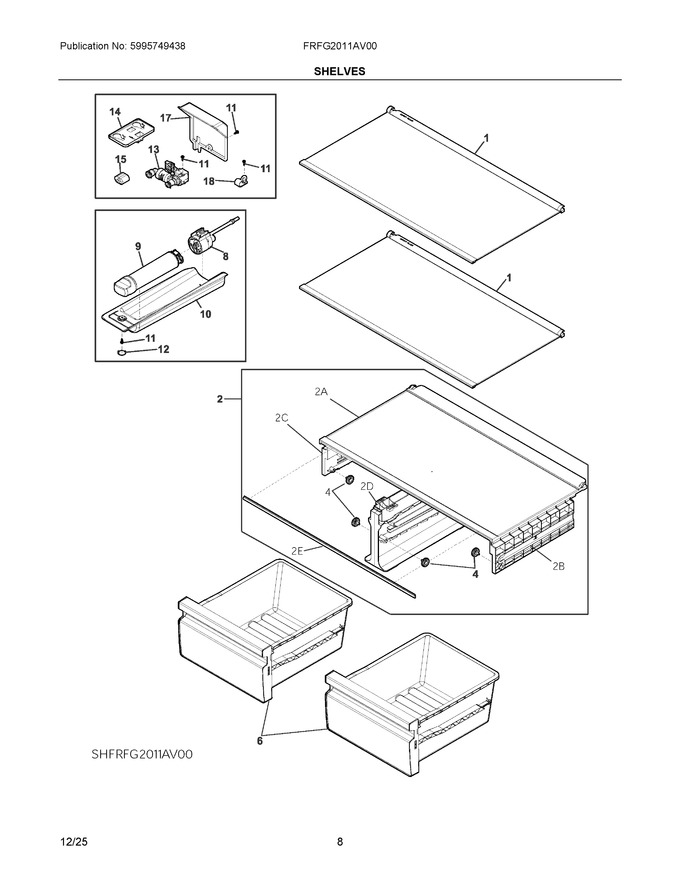

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140293841015		Shelf Assembly, Glass, 5mm		Appelez-nous	-
2	140056575024		Cover Assembly, Crisper		Appelez-nous	-
4	5304519124		Roller, Crisper Glide				$ 16.84
6	140291856015		Crisper Drawer, Assembly		Appelez-nous	-
8	5304529157		Manifold, Water Filter, Connector				$ 90.86
9	EPTWFU01		Filter Assembly, Pure Source, W/cap   (Replaces: 5304520985)			Immediately	$ 75.59
10	5304533534		Cover, Water Filter		Appelez-nous	-
11	811949503		Screw, Truss, 4.2 X 13				$ 3.03
12	5304529187		Cover, Screw, Water Filter		Appelez-nous	-
13	140024774022		Valve, Electric, Inlet, 2-way, 120v				$ 103.49
14	5304529156		Bracket, Manifold		Appelez-nous	-
15	5304529159		Grommet, Rear Tube		Appelez-nous	-
17	140293895011		Valve Cover, Rear		Appelez-nous	-
18	240396803		Clamp, Tube/wiring, 5/16				$ 7.59
2A	140056571015		Cover Crisper, W/glass		Appelez-nous	-
2B	140293784025		Support, Crisper, Right		Appelez-nous	-
2C	140293784017		Support, Crisper, Left		Appelez-nous	-
2D	5304529190		Support, Crisper, Center		Appelez-nous	-
2E	140026444038		Gasket, Crisper Cover, Front		Appelez-nous	-
NI	5304523053		Connector, Tubing, Quick Connect			Immediately	$ 25.94
NI	5304519089		Screw, Self-tapping, M5 X 0.8				$ 6.07
NI	140031581113		Tube, Water Filter, To Valve		Appelez-nous	-
NI	140031581121		Tube, Water Valve To Dispenser		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
