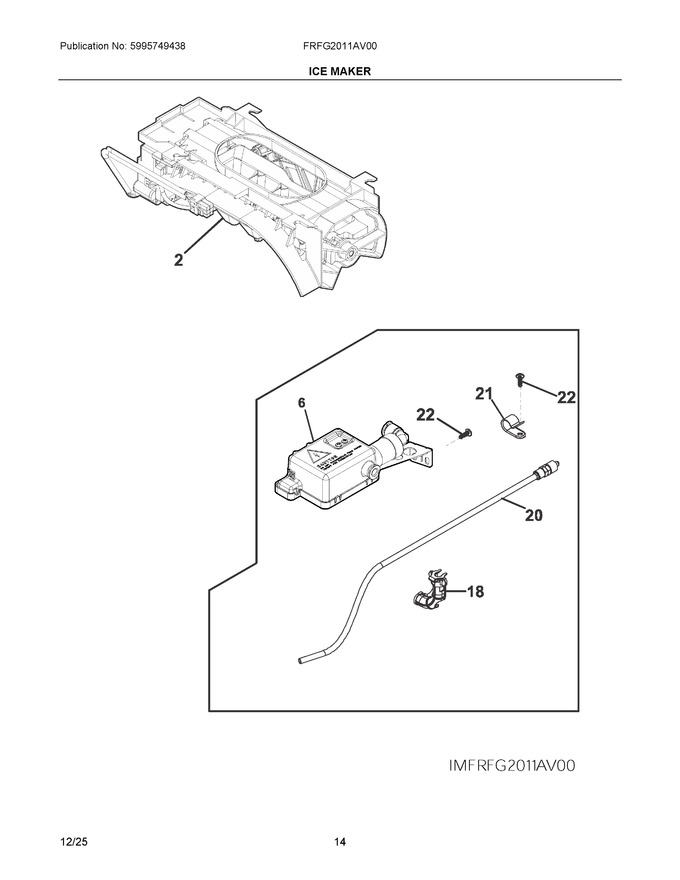

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 243297618 | Ice Maker, Assembly, Automatic, Archer |
|
$ 136.35 | |||||
| 6 | 5304529163 | Valve, Water, Single Solenoid |
|
Immediately | $ 139.28 | ||||
| 20 | 5304538933 | Tube Assembly, Inlet Water, W/connector |
|
- | |||||
| 21 | 240396803 | Clamp, Tube/wiring, 5/16 |
|
$ 7.59 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| NI | 5304534887 | Clamp, Water Tube |
|
$ 8.87 | |||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
