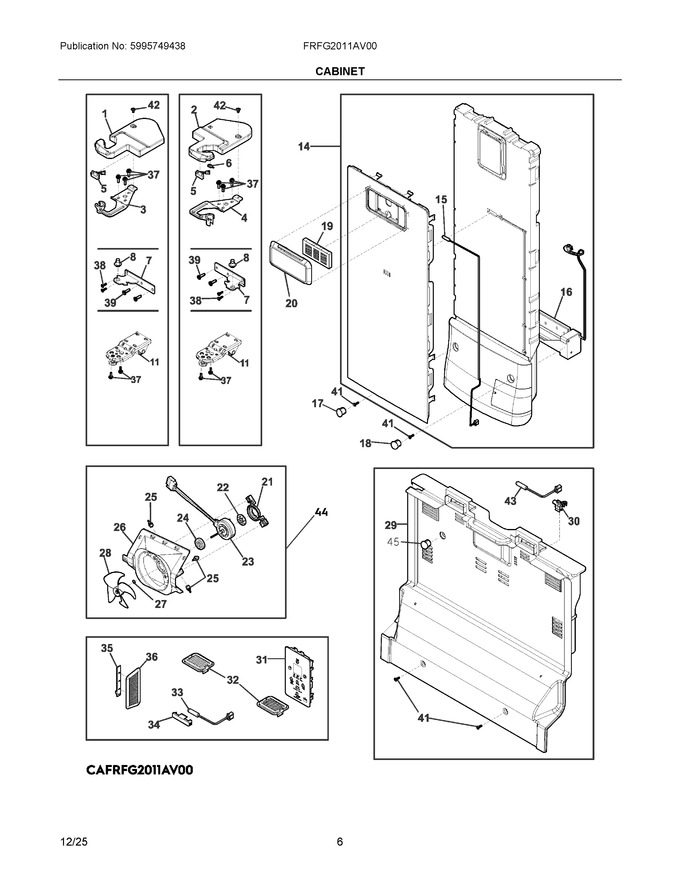

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140018267090		Cover, Top Hinge, Grey, Lh				$ 6.38
2	5304535279		Cover, Top Hinge, Rh		Appelez-nous	-
3	5304529181		Hinge, Door, Lh Top				$ 19.72
4	5304529182		Hinge, Door, Rh Top				$ 24.62
5	5304532559		Switch, Reed, Door   (Replaces: 5304529184)				$ 19.57
6	140217317019		Sensor, Humidity				$ 21.43
7	5304529177		Hinge, Assembly, Center				$ 28.27
8	5304529178		Pin, Door Hinge, Center			Immediately	$ 9.86
11	5304537479		Foot Assembly, Cabinet			Immediately	$ 19.55
14	140007489168		Air Tower Assembly, Fresh Food				$ 119.89
15	5304529132		Harness, Temperature, Fresh Food			Immediately	$ 21.74
16	5304529131		Damper Assembly			Immediately	$ 76.29
17	5304529134		Cover, Screw, Lh, Air Tower		Appelez-nous	-
18	5304529135		Cover, Screw, Rh, Air Tower		Appelez-nous	-
19	PAULTRA2		Filter, Air   (Replaces: 242047809)			Immediately	$ 42.18
20	140050812217		Cover, Air Filter, Fresh Food		Appelez-nous	-
21	5304519177		Clip, Retainer				$ 8.34
22	5304519178		Grommet, Fan Mounting			Immediately	$ 7.59
23	809069207		Motor, Fan, Freezer Evaporator			Immediately	$ 148.78
24	5304529138		Grommet, Fan				$ 9.10
25	811972801		Grommet, Evap Fan, Side				$ 7.09
26	811975001		Shroud, Evaporator Fan				$ 15.32
27	140242549016		Washer, Slinger, Nylon		Appelez-nous	-
28	811699604		Blade, Evaporator Fan			Immediately	$ 4.19
29	140059931059		Cover Evaporator, Assembly		Appelez-nous	-
30	811980406		Clamp, Ntc, Evaporator   (Replaces: 5304534879)				$ 4.19
31	140040668174		User Interface, Display, Assembly, Control				$ 119.20
32	140008964052		Cover, Grid, Air Return		Appelez-nous	-
33	140205244027		Reed Switch, Door, Lower Cabinet, Freezer		Appelez-nous	-
34	807917002		Cover, Reed Switch, Freezer		Appelez-nous	-
35	140155609047		Led Pcb, Light Board, 3 Led Cluster, 6500k				$ 17.43
36	5304519099		Lens, Led Light			Immediately	$ 12.13
37	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
41	5304529133		Screw, Tapping Ph, M4 X 16		Appelez-nous	-
42	5304519089		Screw, Self-tapping, M5 X 0.8				$ 6.07
43	140126760044		Harness, Temperature, Fresh Food			Immediately	$ 13.96
44	8588119754089		Fan Assembly, Freezer				$ 109.05
45	8588119716054		Cover, Screw Hole, White		Appelez-nous	-
NI	811949503		Screw, Truss, 4.2 X 13				$ 3.03
NIA	140224757033		Seal, Foam, Air Channel		Appelez-nous	-
