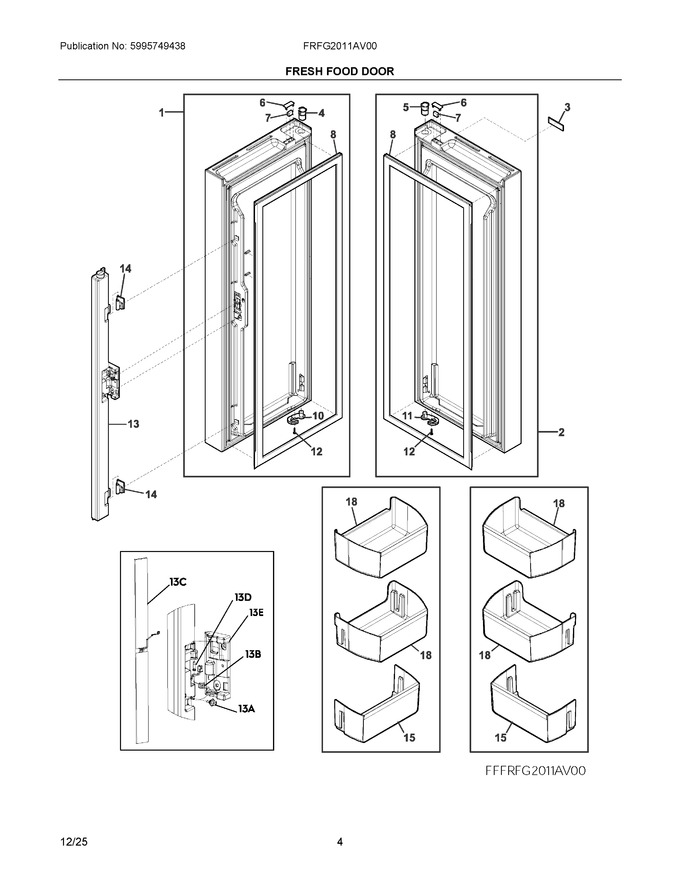

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140296276037		Door Assembly, Fresh Food, Left, Stainless			Immediately	$ 241.97
2	140296276011		Door Assembly, Fresh Food, Right, Stainless				$ 357.52
3	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 47.03
4	5304529298		Bearing, Upper, Lh Door		Appelez-nous	-
5	5304529296		Bearing, Upper, Rh Door				$ 9.14
6	5304526830		Cover, Sensor Magnet		Appelez-nous	-
7	140026775019		Sensor, Magnet, Switch, Reed				$ 4.11
8	8119885567		Gasket, Fresh Food Door, Magnet		Appelez-nous	-
10	140010465163		Bearing, Door, Lh, Auto Closer			Immediately	$ 5.11
11	140010465148		Bearing, Door, Auto Closer				$ 6.00
12	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
13	5304529180		Mullion Assembly, Flip, Gray, W/heater			Immediately	$ 130.39
14	5304519080		Hinge, Flip Mullion, Bottom/middle			Immediately	$ 11.42
15	140288984010		Bin Door, Lower		Appelez-nous	-
18	140288983012		Bin Door, Middle & Upper		Appelez-nous	-
13A	8119728023		Grommet, Mullion		Appelez-nous	-
13B	140013719012		Spring, Flip Mullion		Appelez-nous	-
13C	140217415011		Heater, Mullion		Appelez-nous	-
13D	140045805011		Bearing, Spring, Flip Mullion		Appelez-nous	-
13E	140013717024		Hinge, Flip Mullion, Center		Appelez-nous	-
NIA	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
