SELECT A DIAGRAM

01 - Cover Sheet

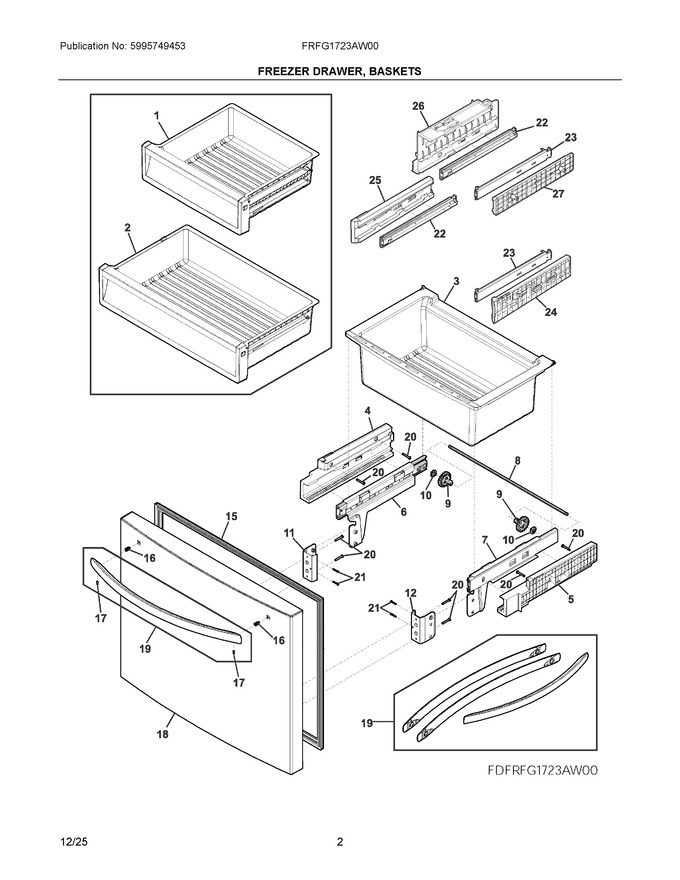

02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Ice Maker


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529195		Drawer Assembly, Freezer, Upper				$ 63.91
2	5304529194		Drawer Assembly, Freezer, Full Width, Middle			Immediately	$ 81.06
3	5304536631		Basket, Freezer Drawer, Lower				$ 63.10
4	5304532280		Housing, Rail, Lh, Telescopic				$ 23.61
5	5304532281		Housing, Rail, Rh, Telescopic			Immediately	$ 22.50
6	5304529169		Slider Assembly, Telescopic, Lh				$ 202.94
7	5304529170		Slider Assembly, Telescopic, Rh				$ 202.99
8	5304537113		Shaft, Telescopic Rail   (Replaces: 5304529171)				$ 37.11
9	140025649017		Gear, Pinion   (Replaces: 140025649033)			Immediately	$ 4.58
10	5304529172		Pad, Bearing, Pinion				$ 7.59
11	5304529176		Bracket, Adjustment, Lh, Drawer				$ 36.41
12	5304529175		Bracket, Adjustment, Rh, Drawer				$ 34.89
15	5304529174		Gasket, Freezer Door, Magnetic			Immediately	$ 189.79
16	5304519063		Screw, Handle Mounting			Immediately	$ 11.48
17	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
18	140296276961		Door Assembly Complete, Freezer, White		Appelez-nous	-
19	140211031038		Handle Set, 3 Handles, White		Appelez-nous	-
20	5304529166		Screw, Phil Ph, 10g X 32mm, Typ B				$ 6.11
21	5304529168		Screw, Btn Hd, M8 X 1.25				$ 9.10
22	5304535762		Slide Extension, Rh			Immediately	$ 33.77
23	5304534927		Slide Extension, Lh			Immediately	$ 34.82
24	140013815018		Bracket, Slide Extension, Lh   (Replaces: 5304534011)			Immediately	$ 13.05
25	5304534012		Bracket, Slide Extension, Rh				$ 21.34
26	140019597032		Support, Pastry Slide, Lh				$ 18.21
27	140021544030		Support, Pastry Slide, Rh		Appelez-nous	-
NIA	5304519066		Screw, Phil Pn Hd, M4 X 8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
