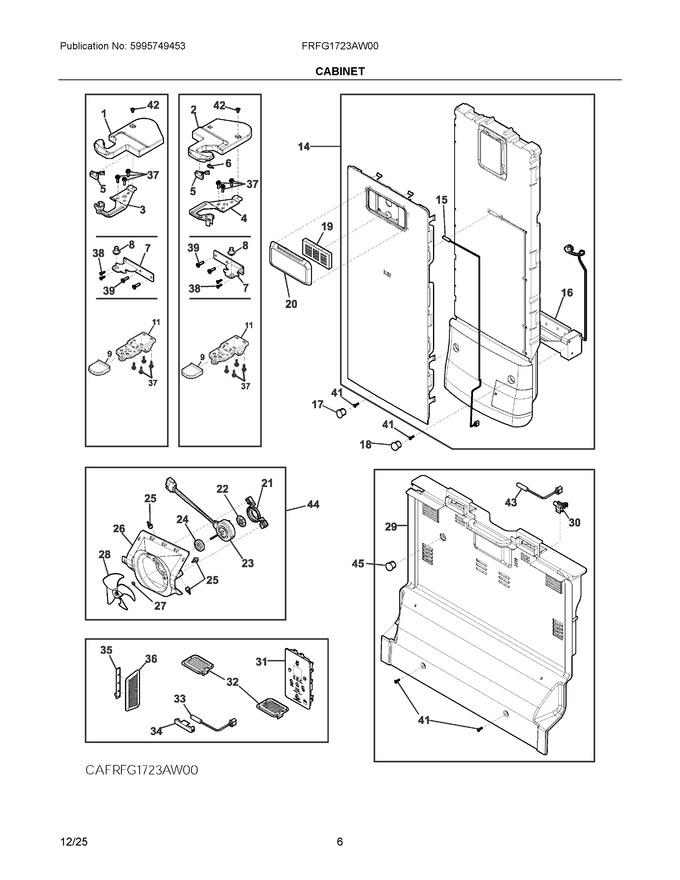

04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Ice Maker
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140018267082 | Cover, Top Hinge, Lh, White |
|
- | |||||
| 2 | 140011455080 | Cover, Top Hinge, Rh, White |
|
- | |||||
| 3 | 5304529181 | Hinge, Door, Lh Top |
|
$ 19.72 | |||||
| 4 | 5304529182 | Hinge, Door, Rh Top |
|
$ 24.62 | |||||
| 5 | 5304532559 | Switch, Reed, Door (Replaces: 5304529184) |
|
$ 19.57 | |||||
| 6 | 140217317019 | Sensor, Humidity |
|
$ 21.43 | |||||
| 7 | 5304529177 | Hinge, Assembly, Center |
|
$ 28.27 | |||||
| 8 | 5304529178 | Pin, Door Hinge, Center |
|
Immediately | $ 9.86 | ||||
| 9 | 140206803029 | Cover, Foot Bracket, Lower |
|
$ 3.73 | |||||
| 11 | 140208834105 | Foot Cabinet, Adjustable, Assembly |
|
- | |||||
| 14 | 5304529130 | Air Tower, Assembly, Fresh Food, W/damper-sensor |
|
$ 150.26 | |||||
| 15 | 5304529132 | Harness, Temperature, Fresh Food |
|
Immediately | $ 21.74 | ||||
| 16 | 5304529131 | Damper Assembly |
|
Immediately | $ 76.29 | ||||
| 17 | 5304529134 | Cover, Screw, Lh, Air Tower |
|
- | |||||
| 18 | 5304529135 | Cover, Screw, Rh, Air Tower |
|
- | |||||
| 19 | PAULTRA2 | Filter, Air (Replaces: 242047809) |
|
Immediately | $ 42.18 | ||||
| 20 | 140050812217 | Cover, Air Filter, Fresh Food |
|
- | |||||
| 21 | 5304519177 | Clip, Retainer |
|
$ 8.34 | |||||
| 22 | 5304519178 | Grommet, Fan Mounting |
|
Immediately | $ 7.59 | ||||
| 23 | 809069207 | Motor, Fan, Freezer Evaporator |
|
Immediately | $ 148.78 | ||||
| 24 | 5304529138 | Grommet, Fan |
|
$ 9.10 | |||||
| 25 | 811972801 | Grommet, Evap Fan, Side |
|
$ 7.09 | |||||
| 26 | 811975001 | Shroud, Evaporator Fan |
|
$ 15.32 | |||||
| 27 | 140242549016 | Washer, Slinger, Nylon |
|
- | |||||
| 28 | 811699604 | Blade, Evaporator Fan |
|
Immediately | $ 4.19 | ||||
| 29 | 5304529145 | Cover Assembly, Evaporator |
|
$ 83.14 | |||||
| 30 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 5304534879) |
|
$ 4.19 | |||||
| 31 | 140040668141 | Control Panel, User Interface, Assembly, I&w Gh Intl |
|
$ 136.46 | |||||
| 32 | 140008964052 | Cover, Grid, Air Return |
|
- | |||||
| 33 | 140205244027 | Reed Switch, Door, Lower Cabinet, Freezer |
|
- | |||||
| 34 | 807917002 | Cover, Reed Switch, Freezer |
|
- | |||||
| 35 | 140155609047 | Led Pcb, Light Board, 3 Led Cluster, 6500k |
|
$ 17.43 | |||||
| 36 | 5304519099 | Lens, Led Light |
|
Immediately | $ 12.13 | ||||
| 37 | 811949401 | Screw, Trilob, M5 X 16 |
|
Immediately | $ 5.31 | ||||
| 38 | 5304523029 | Screw, Trilobular, M4 X 12 |
|
- | |||||
| 39 | 807826801 | Screw, Trilob, M6 X 18, Center Hinge |
|
$ 6.82 | |||||
| 41 | 5304529133 | Screw, Tapping Ph, M4 X 16 |
|
- | |||||
| 42 | 5304519089 | Screw, Self-tapping, M5 X 0.8 |
|
$ 6.07 | |||||
| 43 | 5304529132 | Harness, Temperature, Fresh Food |
|
Immediately | $ 21.74 | ||||
| 44 | 8588119754089 | Fan Assembly, Freezer |
|
$ 109.05 | |||||
| 45 | 8588119716054 | Cover, Screw Hole, White |
|
- | |||||
| NI | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 |
