New Model Search:

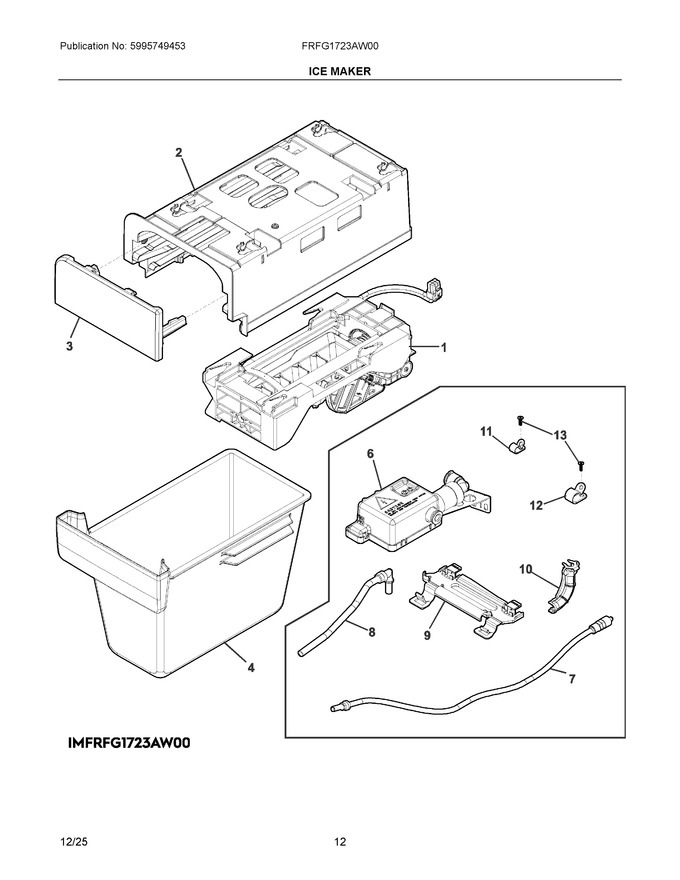

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 243297604 | Ice Maker, Complete, Freezer, 115 V |
|
Immediately | $ 175.68 | ||||
| 2 | 5304529286 | Bracket, Ice Maker |
|
Immediately | $ 26.04 | ||||
| 3 | 5304529154 | Cover, Ice Maker |
|
$ 18.79 | |||||
| 4 | 5304533997 | Bin, Ice |
|
$ 24.19 | |||||
| 6 | 5304529163 | Valve, Water, Single Solenoid |
|
Immediately | $ 139.28 | ||||
| 7 | 5304538933 | Tube Assembly, Inlet Water, W/connector |
|
- | |||||
| 8 | 5304529155 | Tube, Ice Maker, Overmold, W/insert |
|
$ 24.42 | |||||
| 9 | 5304534887 | Clamp, Water Tube |
|
$ 8.87 | |||||
| 10 | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| 11 | 240396803 | Clamp, Tube/wiring, 5/16 |
|
$ 7.59 | |||||
| 12 | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 19.13 | |||||
| 13 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| NI | 811908801 | Cable Tie |
|
- | |||||
| NIA | 5304529153 | Screw, Phil Ph, M4 X 6 |
|
- |
