SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet


05 - Shelves

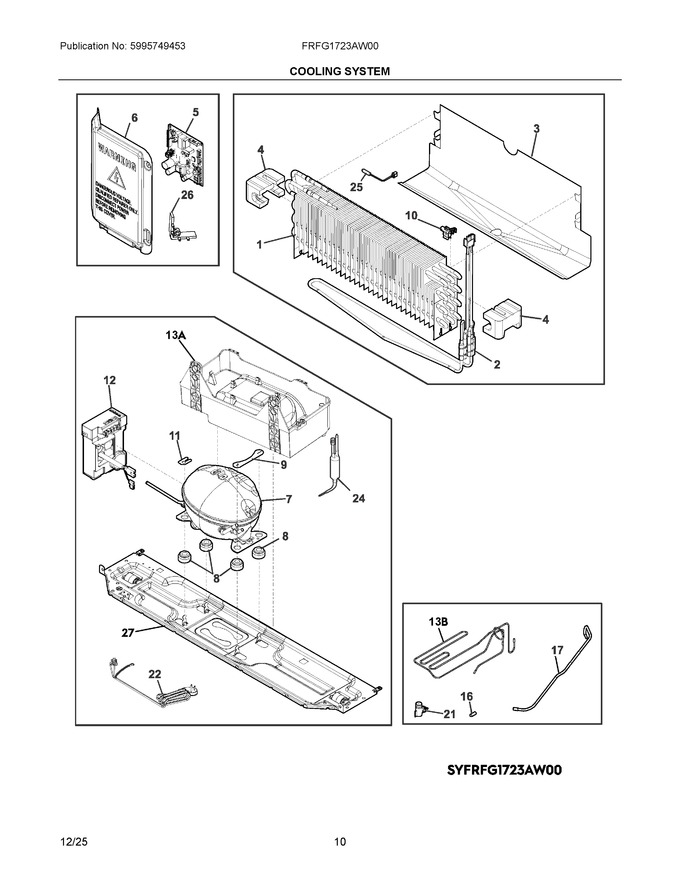

06 - Cooling System


07 - Ice Maker


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529139		Evaporator, Coil			Immediately	$ 121.09
2	5304529140		Heater, Defrost, Evaporator			Immediately	$ 150.92
3	5304529143		Trough, Drain, Evaporator			Immediately	$ 70.37
4	5304529142		Support, Evaporator		Appelez-nous	-
5	973925060963007		Configured Electronic, Main Board, Pcb Erf2004				$ 118.68
6	140014689016		Cover, Main Electronic, Board, Rear		Appelez-nous	-
7	5304529146		Compressor, Embraco, Fmxa9c				$ 354.85
8	811978901		Grommet, Compressor		Appelez-nous	-
9	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 2.89
10	811980406		Clamp, Ntc, Evaporator   (Replaces: 5304534879)				$ 4.19
11	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
12	5304529147		Inverter Assembly, Compressor, Fmx			Immediately	$ 370.99
16	5304529162		Cap, Tubing				$ 4.55
17	5304529148		Tube, Jumper				$ 28.05
21	811976001		Valve Assembly, Drain				$ 9.10
22	5304536756		Cord, Power, Electric Service				$ 29.68
24	A19676501		Dryer Assembly, Filter   (Replaces: 5304522277)			Immediately	$ 99.73
25	5304520944		Sensor, Temperature			Immediately	$ 20.74
26	140012787028		Housing, Control Board, Rear, Pcb		Appelez-nous	-
27	8588078227143		Base Compressor, Assembly, 170.5x765.4		Appelez-nous	-
13A	5304536578		Drain Pan				$ 14.05
13B	140254958014		Tube, Drainage Heater, Copper		Appelez-nous	-
NI	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
NI	811949503		Screw, Truss, 4.2 X 13				$ 3.03
NI	5304519110		Screw, Trilob, M3 X 6				$ 3.03
NI	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
