SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Drawer, Baskets

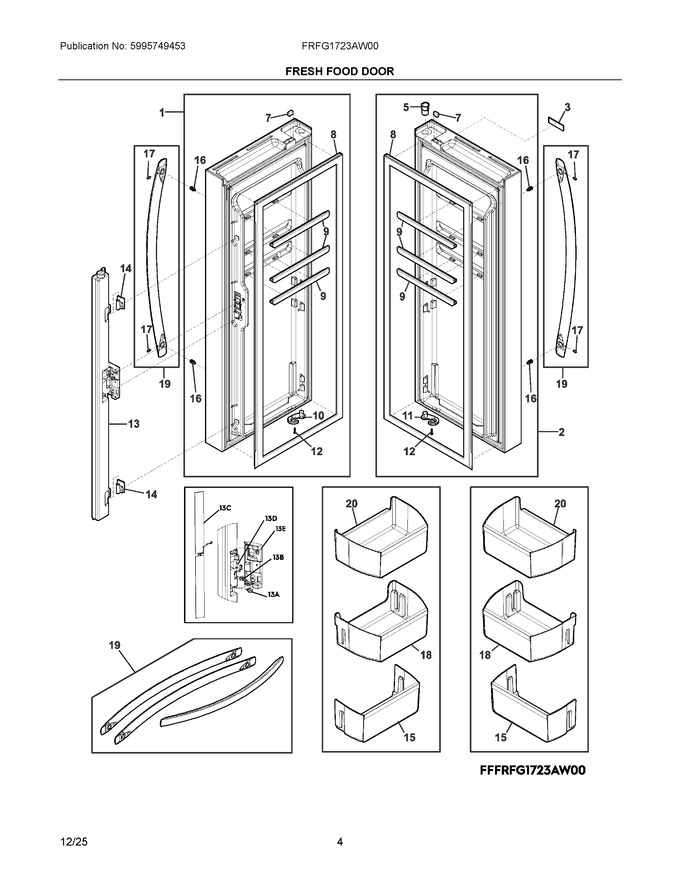

03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Ice Maker


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140296276953		Door Assembly Complete, Fresh Food, Lh, White				$ 147.17
2	140296276979		Door Assembly Complete, Fresh Food, Rh, White		Appelez-nous	-
3	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 47.03
5	5304529296		Bearing, Upper, Rh Door				$ 9.14
7	140026775019		Sensor, Magnet, Switch, Reed				$ 4.11
8	811988531		Gasket, Door, Magnetic				$ 191.86
9	811986812		Rail, Support, Door Bin				$ 15.17
10	140010465155		Bearing, Fresh Food Door, Left, Auto Closer, White		Appelez-nous	-
11	140010465130		Bearing, Fresh Food Door, Rh, Auto Closer, White		Appelez-nous	-
12	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
13	5304529180		Mullion Assembly, Flip, Gray, W/heater			Immediately	$ 130.39
14	5304519080		Hinge, Flip Mullion, Bottom/middle			Immediately	$ 11.42
15	5304529198		Bin, Door, Bottle, Lower				$ 75.57
16	5304519063		Screw, Handle Mounting			Immediately	$ 11.48
17	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
18	5304529199		Bin, Door, Middle				$ 98.23
19	140211031038		Handle Set, 3 Handles, White		Appelez-nous	-
20	5304529197		Bin, Door, Top			Immediately	$ 111.43
13A	8119728023		Grommet, Mullion		Appelez-nous	-
13B	140013719012		Spring, Flip Mullion		Appelez-nous	-
13C	140217415011		Heater, Mullion		Appelez-nous	-
13D	140045805011		Bearing, Spring, Flip Mullion		Appelez-nous	-
13E	140013717024		Hinge, Flip Mullion, Center		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
