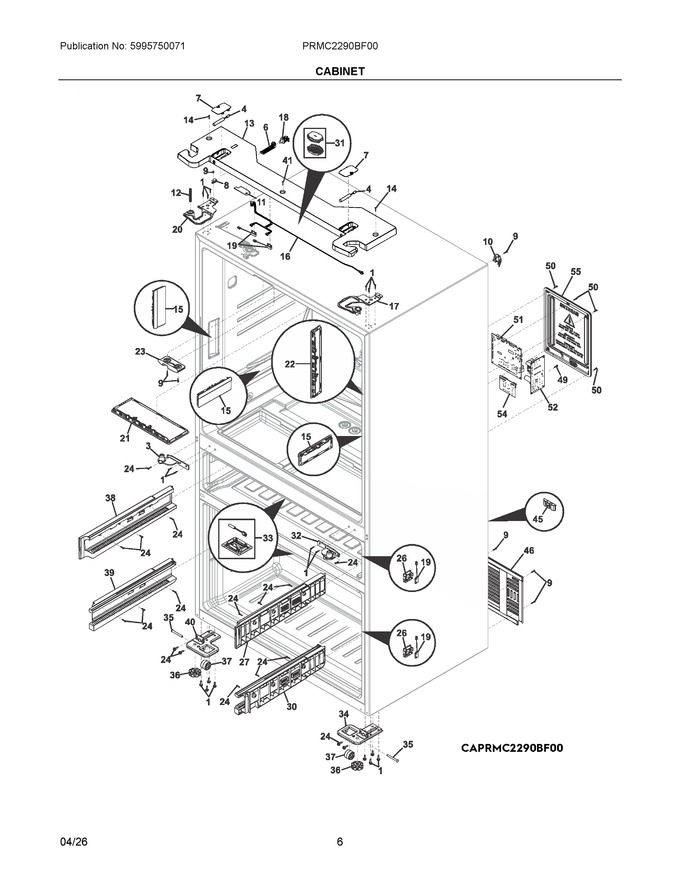

04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
3	5304519085		Hinge, Center, Lh		Appelez-nous	-
4	5304532659		Damper, Soft Close				$ 26.80
6	5304529582		Cover, Trigger, Eyebrow, Soft Close				$ 7.96
7	5304529583		Cover, Eyebrow, Soft Close			Immediately	$ 7.44
8	240396801		Clamp, Tube/wiring, 1/2", Nylon, Black/natural				$ 19.13
9	811949503		Screw, Truss, 4.2 X 13				$ 3.03
10	5304519086		Cover, Inlet Tube, Rear		Appelez-nous	-
11	5304529578		Shield, Eyebrow		Appelez-nous	-
12	5304519067		Spring, Tube Protection			Immediately	$ 10.62
13	140199510037		Cover, Upper Trimming, 912x217.6				$ 39.56
14	5304519089		Screw, Self Tapping, M5 X 0.8				$ 6.07
15	5304524656		Light Assembly, Led, Single, W/lens   (Replaces: 5304534883)			Immediately	$ 55.67
16	140301292011		Wiring Harness, Eyebrow Mdr4		Appelez-nous	-
17	5304536152		Hinge, Top, Rh				$ 27.34
18	5304519093		Switch, Light, Gray				$ 31.86
19	5304532559		Switch, Door Reed				$ 19.57
20	5304536153		Hinge, Top, Lh				$ 19.11
21	5304536788		Light Assembly, Led, 2x Upper, W/lens, Pcb, Harn   (Replaces: 5304534885)				$ 53.54
22	5304534884		Light Assembly, Led, 2gr, W/lens, Pcb, Harn			Immediately	$ 84.71
23	5304520058		Guide Assembly, Flip Mullion, Base				$ 13.46
24	5304519098		Screw, Trilob, M4 X 12				$ 3.03
26	5304519100		Cover, Reed Switch				$ 7.96
27	5304529537		Support, Drawer Slider, Rh Middle		Appelez-nous	-
30	5304523899		Support, Drawer Slider, Rh Freezer			Immediately	$ 38.07
31	140126808041		Housing, Connectors, X2, Md36		Appelez-nous	-
32	5304519104		Hinge, Middle, Rh				$ 56.88
33	5303918850		Thermistor Kit, Temperature, W/housing				$ 44.94
34	5304519105		Bracket, Leveling Foot, Rh				$ 58.35
35	811998302		Shaft, Cabinet Roller				$ 10.62
36	5304519106		Foot, Leveling, Stabilizer				$ 17.44
37	811666601		Roller, Cabinet				$ 9.10
38	5304529536		Support, Drawer Slider, Lh Middle		Appelez-nous	-
39	5304523900		Support, Drawer Slider, Lh Freezer			Immediately	$ 37.93
40	5304519109		Bracket, Leveling Foot, Lh				$ 57.64
41	5304526847		Screw, Tri Lobe, M4 X 6		Appelez-nous	-
45	5304519111		Clip, Tube, Rear				$ 8.34
46	140040610028		Cover Machine, Rear Panel		Appelez-nous	-
49	519092015		Screw, 4, 8x16 Ph		Appelez-nous	-
50	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
51	5304534043		Pc Board, Control, Main			Immediately	$ 140.85
52	5304526795		Pc Board, Power Supply			Immediately	$ 309.66
54	5304519115		Pc Board, Ac Line Filter, Emc			Immediately	$ 247.43
55	5304519117		Cover, Assembly, Pcb Box		Appelez-nous	-
NI	808337901		Screw, Pf Ab Pfz Pf, 3.5x1.27x19				$ 3.03
NI	5304526848		Screw, Self Tapping, 4.2 X 13		Appelez-nous	-
NI	5304519116		Harness, Wiring, Power Supply				$ 19.36
NIA	240396803		Clamp, Tube/wiring, 5/16				$ 7.59
