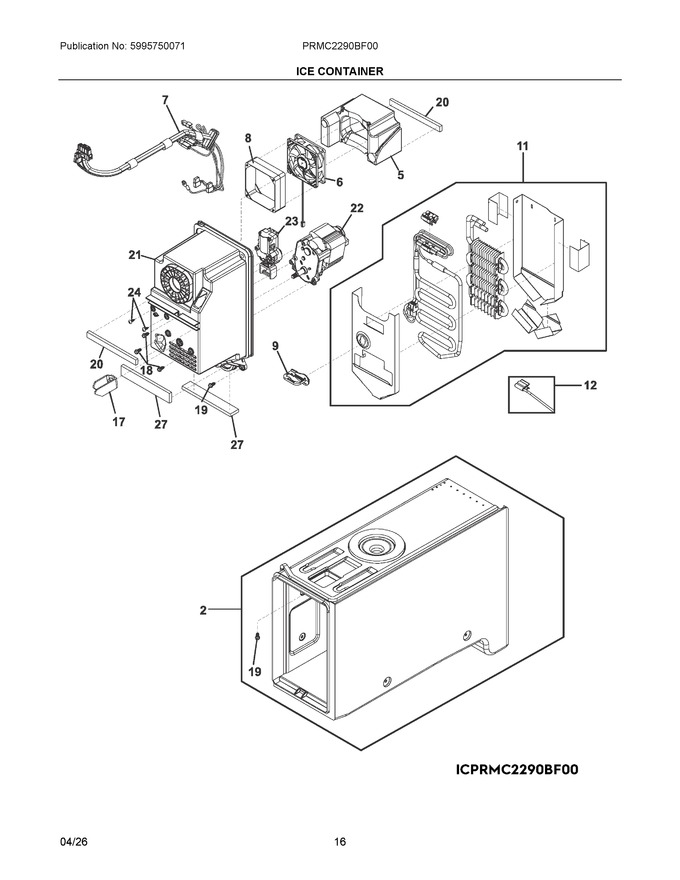

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	A20299501		Housing Assembly, Ice Maker, W/gaskets		Appelez-nous	-
5	5304523073		Duct, Ice Maker Fan			Immediately	$ 40.29
6	140142391030		Fan Assembly, Motor, Ice Maker, 3.6w, 3500rpm		Appelez-nous	-
7	5304534890		Harness, Wiring, Air Handler				$ 100.85
8	5304508063		Grommet, Fan			Immediately	$ 15.92
9	5304508037		Connector, Harness, Evap Cover				$ 14.41
11	140068083116		Evaporator Assembly, Ice Maker, Complete			Immediately	$ 95.78
12	5303918645		Thermistor Kit, Evaporator, W/connector			Immediately	$ 84.60
17	241829001		Bar-drive				$ 58.55
18	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
19	519088008		Screw, Vt Af/2p, 5 X 16		Appelez-nous	-
20	5303918784		Gasket-evap Housing, .250x.250x5.250   (Replaces: 242095404)			Immediately	$ 122.75
21	5304534888		Housing, Air Handler			Immediately	$ 177.64
22	5304534889		Motor, Auger			Immediately	$ 177.22
23	140159718018		Selector, Ice Crush/cube				$ 38.84
24	811949503		Screw, Truss, 4.2 X 13				$ 3.03
27	5304519211		Gasket, Air Handler, Front				$ 9.45
