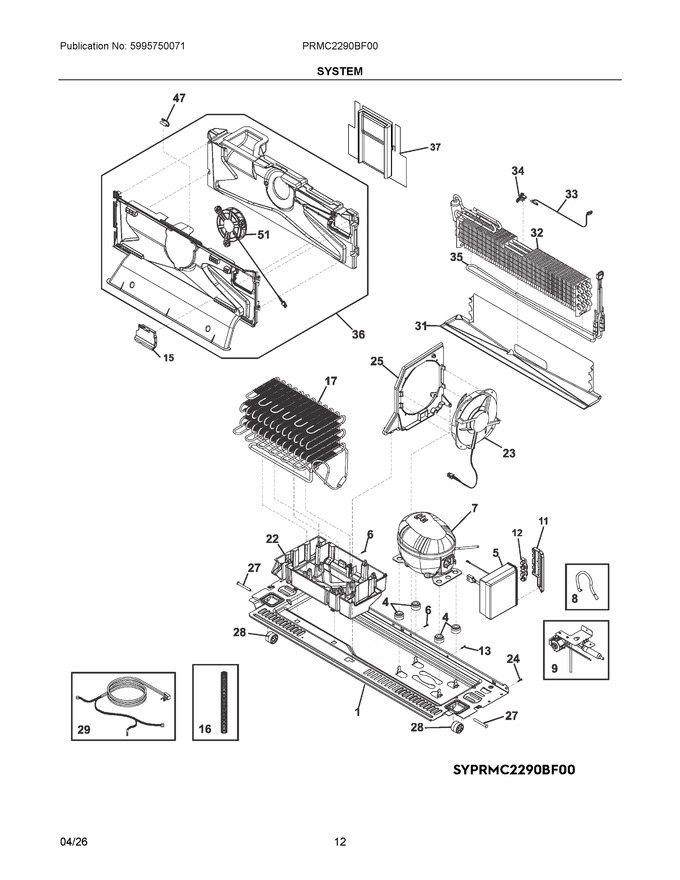

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 140026217053 | Base Compressor, Assembly |
|
- | |||||
| 4 | 811978901 | Grommet, Compressor |
|
- | |||||
| 5 | 5304523061 | Control Assembly, Flex Drive |
|
Immediately | $ 342.38 | ||||
| 6 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 7 | 5304523062 | Compressor, Assembly, Vnd1113y |
|
Immediately | $ 771.31 | ||||
| 8 | 5304526794 | Tube, Suction |
|
Immediately | $ 40.60 | ||||
| 9 | 5304529531 | Step Valve, Assembly, W/filter Drier |
|
Immediately | $ 186.52 | ||||
| 11 | 5304533517 | Cover, Flex Drive, Side, Compressor |
|
- | |||||
| 12 | 5304526793 | Clamp, Flex Drive, Cable |
|
$ 9.10 | |||||
| 13 | 5304523032 | Screw, Trilob, M4 X 7.5 |
|
- | |||||
| 15 | 5304534915 | Cover, Window, Freezer |
|
- | |||||
| 16 | 5304519156 | Drain Tube, Corrugated |
|
$ 6.07 | |||||
| 17 | 5304538286 | Condenser, Assembly, Dynamic |
|
Immediately | $ 190.51 | ||||
| 22 | 5304529527 | Drain Pan, Condenser |
|
$ 29.65 | |||||
| 23 | 5304525730 | Fan Assembly, Condenser |
|
$ 104.10 | |||||
| 24 | 808199001 | Screw, Self Tapping, 6 X 20 |
|
$ 7.09 | |||||
| 25 | 5304529530 | Shroud, Condenser Fan |
|
$ 16.74 | |||||
| 27 | 811998302 | Shaft, Cabinet Roller |
|
$ 10.62 | |||||
| 28 | 811666601 | Roller, Cabinet |
|
$ 9.10 | |||||
| 29 | 5304538934 | Power Cord, Electric |
|
$ 55.38 | |||||
| 31 | 5304519162 | Drain Trough, Evaporator, Freezer |
|
- | |||||
| 32 | 5304529535 | Evaporator, Assembly, Freezer |
|
Immediately | $ 159.46 | ||||
| 33 | 5303918851 | Thermostat Kit, Defrost, W/connectors |
|
Immediately | $ 36.75 | ||||
| 34 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 5304534879) |
|
$ 4.19 | |||||
| 35 | 140159197049 | Heater Defrost, Evaporator |
|
$ 103.24 | |||||
| 36 | 5304534880 | Cover Assembly, Evaporator, Freezer, W/fan Assemby |
|
$ 156.03 | |||||
| 37 | 5304529534 | Duct, Air Return |
|
- | |||||
| 47 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 51 | 5304536608 | Motor, Fan, Frz Evaporator |
|
$ 111.33 | |||||
| NI | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 19.13 | |||||
| NI | 240396803 | Clamp, Tube/wiring, 5/16 |
|
$ 7.59 | |||||
| NIA | 5304529529 | Grommet, Dyco Tube |
|
- | |||||
| NIA | 5304532654 | Screw, Flex Drive, 4*10 Hi Lo |
|
- |
