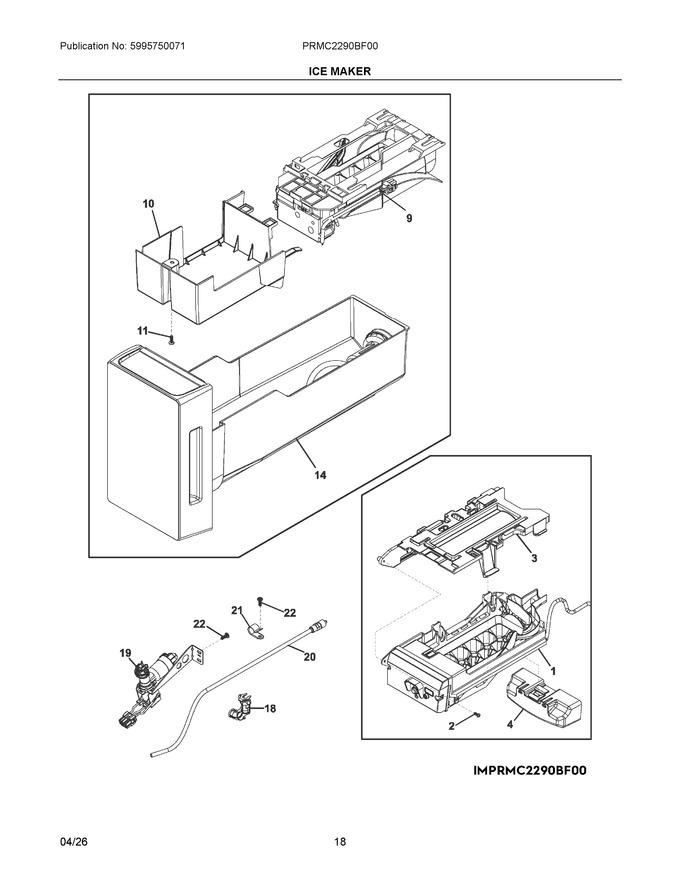

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304532556 | Ice Maker, Assembly, Freezer, Twist Tray |
|
Immediately | $ 146.61 | ||||
| 2 | 241641502 | Screw, Hilo Phil Pn, 8-18 X 3/8 |
|
$ 8.51 | |||||
| 3 | A13554803 | Bracket, Ice Maker, Freezer |
|
- | |||||
| 4 | 5304524340 | Cover, Ice Blocker |
|
$ 17.87 | |||||
| 9 | 243297608 | Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray |
|
Immediately | $ 164.41 | ||||
| 10 | 5304523076 | Cover, Harness, Ff Ice Maker |
|
Immediately | $ 20.24 | ||||
| 11 | 5304453707 | Screw, Quad Hilo Sts, #8-18 (Replaces: 241953909) |
|
Immediately | $ 15.92 | ||||
| 14 | 5304537045 | Bucket Assembly, Ice Container, W/moving Parts (Replaces: 5304526821) |
|
Immediately | $ 171.22 | ||||
| 18 | 140250227018 | Bracket, Water Valve |
|
Immediately | $ 4.17 | ||||
| 19 | 5304536607 | Valve, Water, Single |
|
Immediately | $ 102.65 | ||||
| 20 | 5304538933 | Tube Assembly, Inlet Water, W/connector |
|
- | |||||
| 21 | 240396801 | Clamp, Tube/wiring, 1/2", Nylon, Black/natural |
|
$ 19.13 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| NI | 811948501 | Cable Tie, 2.5 X 120 |
|
- | |||||
| NI | 5304534887 | Clamp, Water Tube |
|
$ 8.87 |
