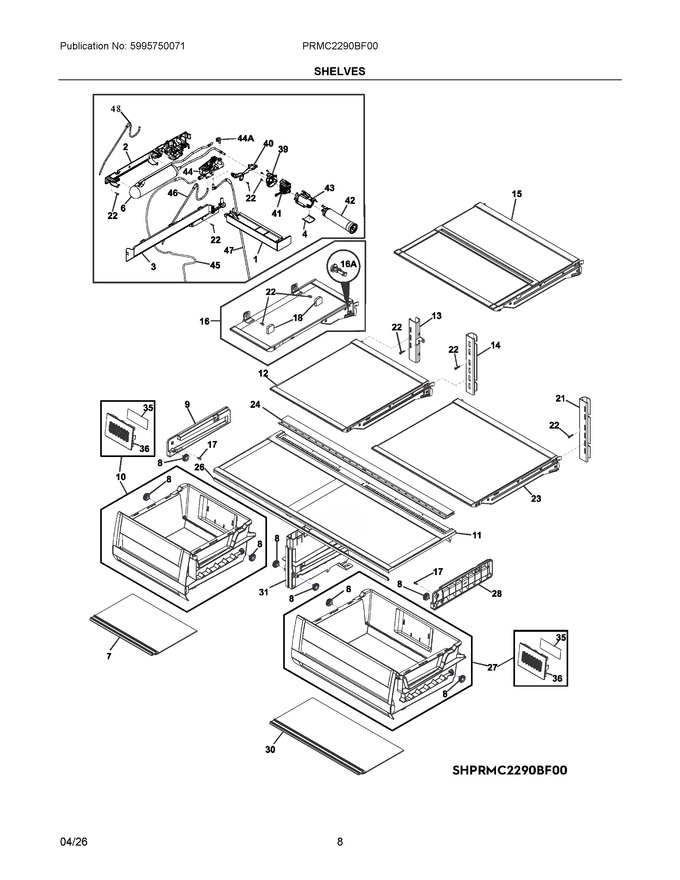

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529551		Cover, Filter Facia				$ 60.44
2	5304529543		Support, Water Valve, & Tank		Appelez-nous	-
3	5304529550		Cover, Water Tank		Appelez-nous	-
4	5304529552		Seal, Foam, 37 X 70mm		Appelez-nous	-
6	5304523037		Tank, Water, Disp Reservoir				$ 179.78
7	140047727296		Glass Cover, Compartment, Lh		Appelez-nous	-
8	5304519124		Roller, Crisper Glide				$ 16.84
9	5304519125		Rail, Crisper, Lh Side		Appelez-nous	-
10	140201919077		Vegetable Box, Assembly, Left		Appelez-nous	-
11	5304531895		Cover Assembly, Crisper, W/glass				$ 102.02
12	5304523041		Shelf Assembly, Cantilever, Glass, Lh				$ 285.15
13	5304523042		Bracket, Cantilever Shelf, Grey, Lh		Appelez-nous	-
14	140049862067		Bracket, Cantilever, Central		Appelez-nous	-
15	5304523044		Shelf Assembly, Cantilever, Glass, Upper				$ 248.94
16	5304523045		Shelf Assembly, Flip Up, Glass, Lh				$ 317.66
17	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
18	5304519133		Cover, Screw, Small				$ 8.19
21	5304523046		Bracket, Cantilever Shelf, Grey, Rh		Appelez-nous	-
22	811949503		Screw, Truss, 4.2 X 13				$ 3.03
23	5304523047		Shelf Assembly, Cantilever, Glass, Rh				$ 281.36
24	5304536619		Housing Assembly, Auto Membrane, W/membrane		Appelez-nous	-
26	140026444095		Gasket, Crisper Drawer, Md36		Appelez-nous	-
27	140201919085		Vegetable Box, Assembly, Right		Appelez-nous	-
28	5304519142		Rail, Crisper, Rh Side				$ 19.72
30	140047727304		Glass Cover, Compartment, Rh		Appelez-nous	-
31	5304532661		Divider, Crisper Cover				$ 60.67
35	FRPAPK2RF		Frigidaire Pa Pk-2 Refill			Immediately	$ 32.14
36	5304529586		Cover, Freshness Boost				$ 17.35
39	5304536610		Cover, Manifold, Rear				$ 2.93
40	5304529545		Guide, Water Tube			Immediately	$ 18.25
42	FPPWFU02		Frig Purepour Wf-2 Connectors			Immediately	$ 88.80
43	5304529547		Cover, Manifold, Front				$ 65.25
44	5304523052		Water Valve, Assembly, Triple			Immediately	$ 236.46
45	5304524353		Tubing, Valve, To Door Hinge			Immediately	$ 36.05
46	5304523685		Tubing, Valve, To Fz Ice Maker				$ 55.51
47	5304529549		Tube, Water, Brown			Immediately	$ 23.06
48	5304534783		Tube, Valve, To Fresh Food, Ice Maker, Im 45 Cut				$ 10.72
16A	5304523682		Pin, Interlock, Flip Up Shelf		Appelez-nous	-
44A	5304523053		Connector, Tubing, Quick Connect			Immediately	$ 25.94
NIA	5304519098		Screw, Trilob, M4 X 12				$ 3.03
