SELECT A DIAGRAM

01 - Cover Sheet

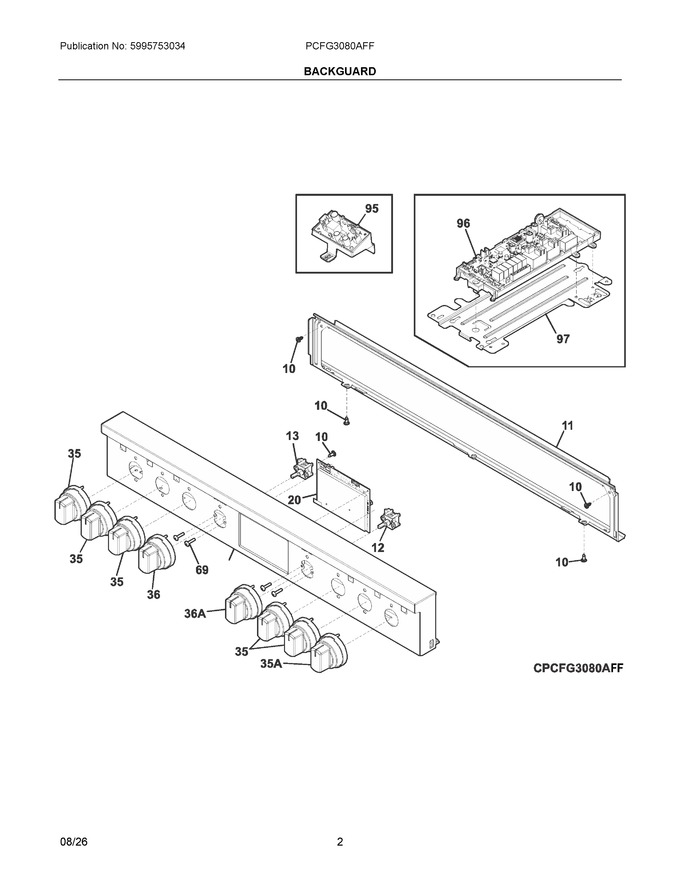

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
11	5304528295		Bracket, Support, Front Control			Immediately	$ 25.33
12	5304539060		Potentiometer, Temp Select, Oven			Immediately	$ 68.01
13	5304539138		Potentiometer, Mode Select, Oven			Immediately	$ 73.63
16	5304538849		Panel Control-cpg				$ 153.99
20	140205295250		Control-eoc Ui630g			Immediately	$ 158.15
35	140204004182		Knob, Top Valve, Stainless, Single			Immediately	$ 32.90
36	5304528448		Knob, Oven Selector, Stainless				$ 55.87
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 3.74
95	5304535286		Board Assembly, Backlit				$ 57.20
96	140171068053		Pc Board, Ovc Relay			Immediately	$ 126.93
97	5304528373		Bracket, Ovc Board			Immediately	$ 22.13
35A	5304537564		Knob, Top Valve, Stainless, Dual			Immediately	$ 58.55
36A	5304528449		Knob, Oven Temp, Stainless			Immediately	$ 55.87
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304536516		Harness, Backlit Knob, Oven Controls		Appelez-nous	-
NI	5304535137		Harness, Wiring, Macs Panel, To Ui Board				$ 16.07
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	5304528462		Harness, Wiring, Potentiometers				$ 169.61
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
