SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram

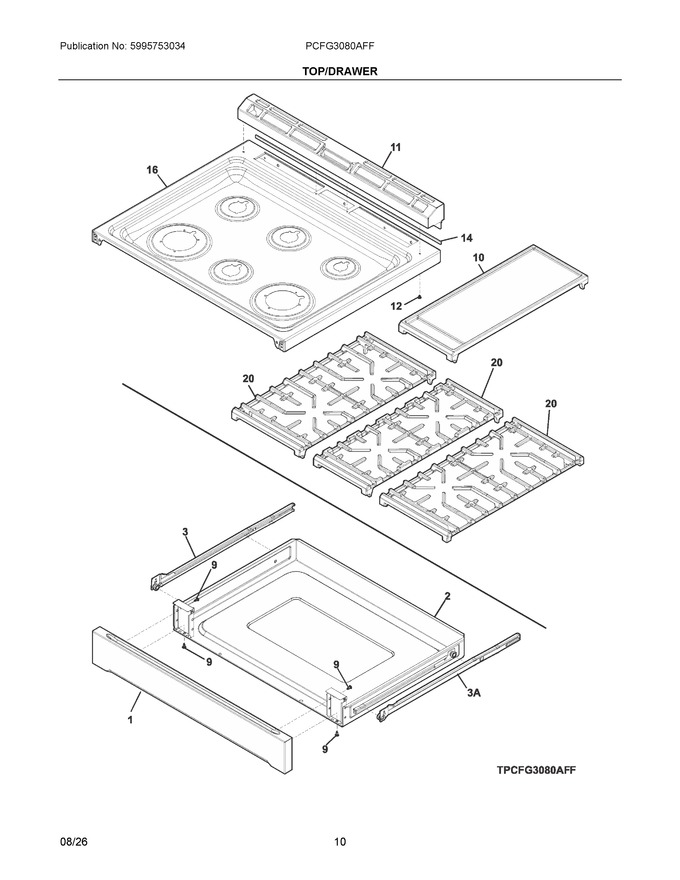

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304528223		Panel, Drawer, Ez Care Stnlss, Outer				$ 112.77
2	5304528242		Drawer Assembly, W/glides			Immediately	$ 99.52
3	5304526306		Glide, Drawer, Black, Lh Outer			Immediately	$ 21.34
9	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
10	5304414648		Screw, Handle Mtg.				$ 14.18
11	5304528496		Trim, Vent, Stainless, Rear				$ 139.42
12	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
14	5304535138		Seal, Maintop		Appelez-nous	-
16	5304528381		Maintop, Assembly, Stainless				$ 123.08
20	5304536584		Grate-asm Coal Mat Blk			Immediately	$ 76.90
10A	5304536512		Griddle, Black				$ 126.66
3A	5304526307		Glide, Drawer, Black, Rh Outer			Immediately	$ 21.34
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
