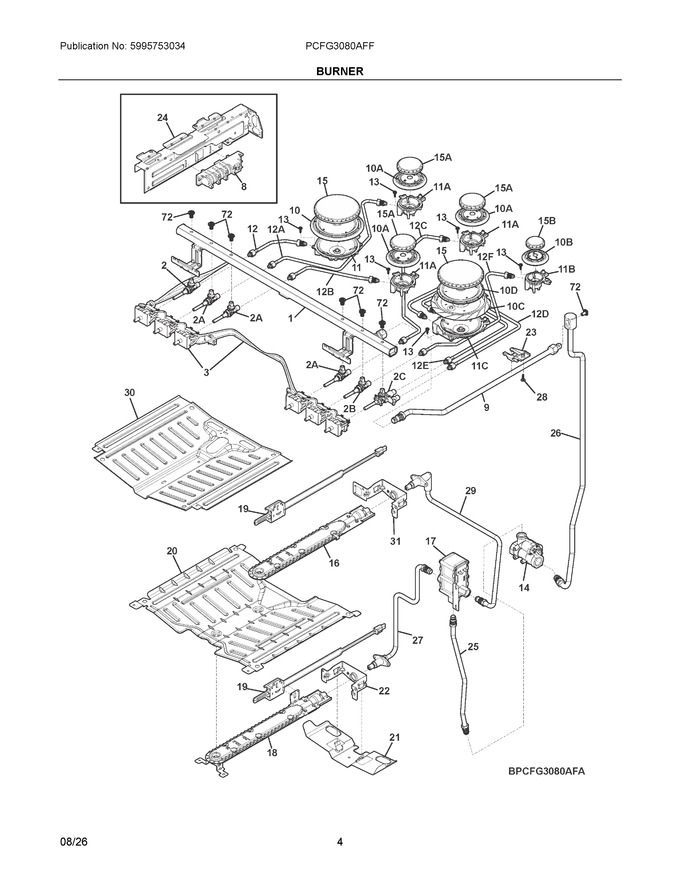

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


07 - Wiring Schematic


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537554		Manifold, Tube		Appelez-nous	-
2	5304507282		Valve, Top Burner, Red Stem, 1800btu			Immediately	$ 53.85
8	808608804		Spark Module			Immediately	$ 76.06
9	5304537580		Tube, Connecting, Manifold, To Regulator		Appelez-nous	-
10	5304537946		Crown, Burner, Xtra Large   (Replaces: 5304533594)			Immediately	$ 21.09
11	5304533611		Ignitor/orifice Assembly, 18k, Assembly			Immediately	$ 53.40
12	5304528538		Tube, Burner, Lh Front		Appelez-nous	-
13	354324404		Screw, T10 Washer, M2.9 X 13				$ 0.79
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 90.03
15	5304533597		Cap, Burner, Xtra Large			Immediately	$ 46.36
16	5304528076		Burner Assembly, Broil				$ 37.61
18	5304533840		Burner, Bake			Immediately	$ 19.54
19	5304534663		Ignitor, Bake/broil			Immediately	$ 107.87
21	5304533911		Shield, Bake Bracket		Appelez-nous	-
22	5304535280		Bracket, Holder, Bake Orifice				$ 4.15
23	5304534683		Bracket, Tubing		Appelez-nous	-
24	5304534687		Bracket, Harness		Appelez-nous	-
25	5304526247		Tube, Supply, Regulator To, Safety				$ 12.34
26	5304534673		Tube, Supply, Regulator To, Manifold			Immediately	$ 23.24
27	5304533910		Tube Assembly, Bake				$ 94.17
28	5304534684		Screw, Tube Bracket		Appelez-nous	-
29	5304533929		Tube Assembly, Broil				$ 110.12
30	5304528281		Baffle, Broil Burner		Appelez-nous	-
31	5304537867		Bracket, Broil Mixer		Appelez-nous	-
72	316215601		Screw, Valve Mtg., 1/4 - 20, T-20				$ 6.17
10A	5304537945		Crown, Burner, Medium   (Replaces: 5304533593)				$ 11.17
10B	5304537944		Crown, Burner, Small   (Replaces: 5304533592)			Immediately	$ 8.56
10C	5304537510		Crown, Bottom, 18k, Burner			Immediately	$ 171.56
10D	140202433011		Crown, Top, Burner, 10			Immediately	$ 158.99
11A	5304535105		Ignitor/orifice, Assembly, 7.5k Btu			Immediately	$ 15.13
11B	5304533582		Ignitor/orifice, Assembly, 5k Btu, Rh Rear			Immediately	$ 35.14
11C	5304535144		Ignitor/orifice, Assembly, 18k Btu, Dual Burner			Immediately	$ 43.23
12A	5304528539		Tube, Burner, Lh Rear		Appelez-nous	-
12B	5304528540		Tube, Burner, Center Front		Appelez-nous	-
12C	5304535143		Tube, Burner, Center Rear		Appelez-nous	-
12D	5304535140		Tube, Burner, Rh Front, Outer		Appelez-nous	-
12E	5304535141		Tube, Burner, Rh Front, Inner		Appelez-nous	-
12F	5304535142		Tube, Burner, Rh Rear		Appelez-nous	-
15A	5304533596		Cap, Burner, Medium			Immediately	$ 32.66
15B	5304533595		Cap, Burner, Small			Immediately	$ 28.92
2A	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
2B	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2C	5304535139		Valve, Dual Burner				$ 97.36
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	3203010		Fastener, U-type, (2)				$ 14.89
NI	316089500		Screw, 10-16 X .486				$ 13.46
NIA	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NIA	5304514202		Nut, Lock, M4 X .70, Thermostat		Appelez-nous	-
NIA	349098702		Screw, T-20 Trilobe, M4 X 7.5, Regulator		Appelez-nous	-
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
