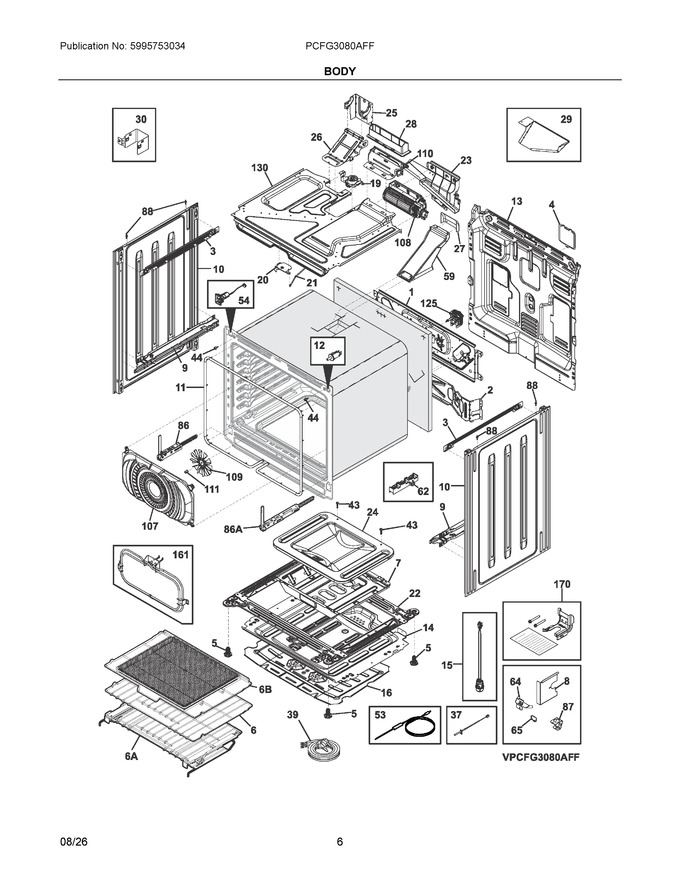

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	140152666081		Plate, Rear Component, Upper		Appelez-nous	-
2	5304533425		Bracket, Components, Lower				$ 61.12
3	5304526493		Bracket, Side Panel, Cooling				$ 15.12
4	5304528328		Cover, Wiring				$ 8.65
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	5304536326		Rack, Oven, W/handle			Immediately	$ 48.26
7	140169549064		Box, Burner, Bake		Appelez-nous	-
8	5304533923		Cover, Terminal Block		Appelez-nous	-
9	5304528546		Receptacle, Hinge Carrier			Immediately	$ 34.48
10	5304526334		Panel, Body Side, Black			Immediately	$ 138.48
11	5304528053		Seal, Door				$ 49.81
12	318394805		Switch, Light, Door				$ 8.06
13	5304536325		Shield, Rear Wire, Small		Appelez-nous	-
14	5304533859		Shield, Insulation, Lower		Appelez-nous	-
15	140072023256		Lamp, Assembly		Appelez-nous	-
16	5304533453		Shield, Drawer Storage, Full		Appelez-nous	-
19	5304528260		Motor, Latch, W/bracket			Immediately	$ 48.44
20	5304528257		Latch Assembly				$ 18.95
21	5304528258		Rod, Door Latch			Immediately	$ 4.08
22	5304533415		Base Rail, Assembly			Immediately	$ 137.66
23	5304536515		Guard, Blower		Appelez-nous	-
24	5304535291		Bottom, Oven, Midnight Black				$ 97.74
25	5304534668		Shield, Heat, Rear		Appelez-nous	-
26	5304534669		Shield, Heat, Front		Appelez-nous	-
27	140227193020		Cover, Flue		Appelez-nous	-
28	5304528430		Diverter, Exhaust		Appelez-nous	-
29	140202790030		Shield, Diverter		Appelez-nous	-
30	5304528182		Shield, Broil, Rear		Appelez-nous	-
37	5304533901		Probe, Oven Sensor			Immediately	$ 25.94
39	5304534691		Cord, Power				$ 69.54
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Bumper, Front, Main				$ 12.05
53	807822611		Probe, Food, Red			Immediately	$ 25.07
54	140233289051		Receptacle, Meat Probe			Immediately	$ 29.34
59	5304534664		Flue, Assembly		Appelez-nous	-
62	A20698901		Terminal Block				$ 11.37
64	5304528551		Shield, Terminal Block		Appelez-nous	-
65	5304533926		Clip, Power Cord		Appelez-nous	-
86	5304528100		Hinge, Oven Door, White, Single Spring			Immediately	$ 91.68
87	5304533922		Bracket, Power Cord				$ 8.14
88	316099501		Pin, Guide		Appelez-nous	-
107	5304526365		Cover, Fan, Midnight Black, Convection		Appelez-nous	-
108	5304537802		Blower Assembly			Immediately	$ 111.38
109	5304525455		Blade, Fan, Convection				$ 14.41
110	5304528419		Duct Assembly, Exhaust, Cooling		Appelez-nous	-
111	561231207		Nut, Fan Blade			Immediately	$ 18.35
125	5304528165		Motor, Convection Fan			Immediately	$ 75.78
130	5304534670		Duct Assembly, Cooling		Appelez-nous	-
170	316112010		Anti Tip Kit, Assy, 30", W/template			Immediately	$ 23.06
161A	5304528164		Element, Convection, 1000w		Appelez-nous	-
6A	5304530447		Rack Assembly, Glide			Immediately	$ 199.50
6B	FRIGPEREAFT		Frig Air Fry Tray Peregrine			Immediately	$ 116.89
86A	5304528101		Hinge, Oven Door, White, Dual Spring			Immediately	$ 38.80
NI	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	5304536410		Standoff, Harness Clamp			Immediately	$ 2.29
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	5304514202		Nut, Lock, M4 X .70, Thermostat		Appelez-nous	-
NI	3203010		Fastener, U-type, (2)				$ 14.89
NI	5304534695		Screw, Self Drill, M3.5 X 9.5				$ 3.67
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
NI	387856311		Screw, 4.2 X 10				$ 3.03
NI	5304535287		Harness, Wiring, Main		Appelez-nous	-
NI	5304535285		Harness, Wiring, Low Voltage				$ 50.94
NIA	5304526532		Screw, M4.2 X 9.5, Black				$ 3.03
NIA	5304533896		Bracket, Oven Probe		Appelez-nous	-
NIA	5304533495		Screw, Sd Hex Washer, 4.2 X 12.7		Appelez-nous	-
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg   (Replaces: 316407200)			Immediately	$ 15.08
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
