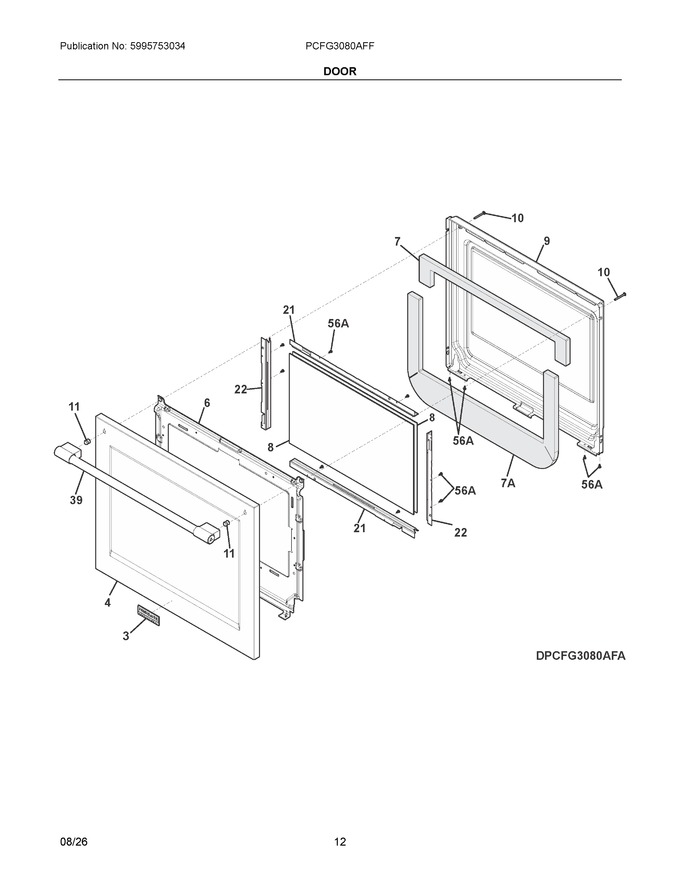

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
07 - Wiring Schematic
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 140300321019 | Badge, Frigidaire Pro |
|
- | |||||
| 4 | 5304537565 | Door Assembly, Outer, Steel/glass, Stainless |
|
$ 207.38 | |||||
| 6 | 5304528106 | Shield, Wool |
|
Immediately | $ 98.04 | ||||
| 7 | 140293846022 | Insulation, Door (2) |
|
Immediately | $ 7.15 | ||||
| 8 | 5304526387 | Glass, Door, Shr, Inner, 2 Side Coating |
|
Immediately | $ 166.09 | ||||
| 9 | 5304528160 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 140.53 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
$ 2.28 | |||||
| 11 | 5304494420 | Nut, Hour Glass, Handle Mtg. |
|
$ 12.76 | |||||
| 21 | 5304526285 | Bracket, Glass Pack, Horizontal |
|
$ 9.10 | |||||
| 22 | 5304526284 | Bracket, Glass Pack, Vertical |
|
Immediately | $ 12.13 | ||||
| 10A | 5304414648 | Screw, Handle Mtg. |
|
$ 14.18 | |||||
| 56A | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| 7A | 140299178040 | Insulation, Door,, Bottom-pur |
|
- | |||||
| 8A | 140163079100 | Glass, Door, Inner |
|
$ 62.12 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.56 | |||||
| NI | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.03 |
