SELECT A DIAGRAM

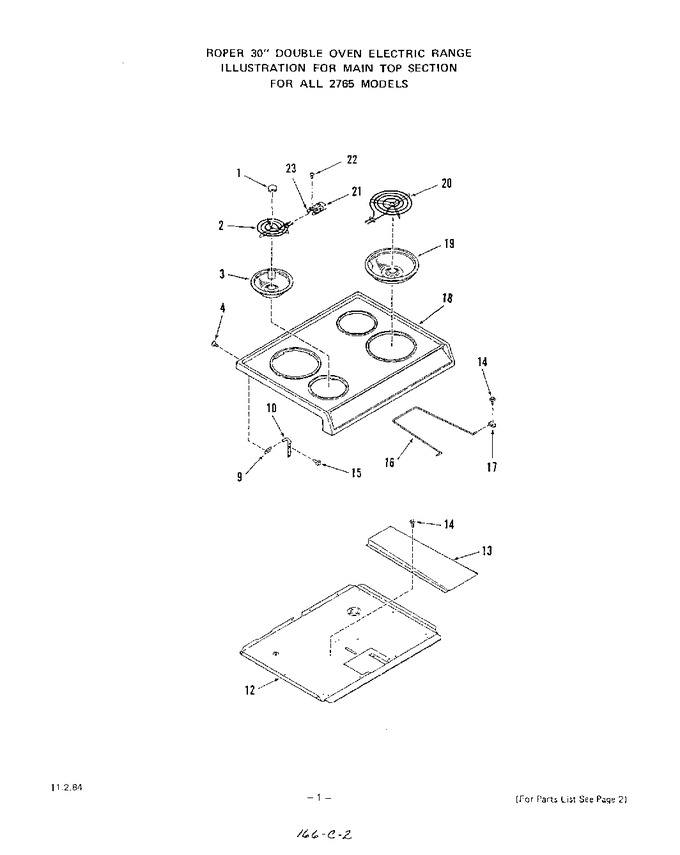

02 - Main Top


03 - Heavy Duty Canning Element , Grid


04 - Power Lock


05 - Lower Body


06 - Oven Door


07 - Upper Oven Pedestal


08 - Control Panel


09 - Blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318586		Medallion (4 Req)		Appelez-nous	-
2	325507		6`` Surface Unit (240 Volt-208 Volt) Lt. Front & Rt. Rear		Appelez-nous	-
3	WPW10196406		6`` Chrome Bowl-lt., Rt. Rear & Lt. Front   (Replaces: 296481)			Immediately	$ 12.05
4	326974		Screw 10abx1/2``		Appelez-nous	-
9	320931		Bracket-main Top Hinge (2 Req)		Appelez-nous	-
10	320921		Hinge-main Top (right)		Appelez-nous	-
10	320922		Hinge-main Top (left)		Appelez-nous	-
12	326064		Burner Box Bottom		Appelez-nous	-
13	308830		Cover-lock Rod		Appelez-nous	-
14	327320		Screw 10-16x7/16``		Appelez-nous	-
15	321162		Screw 10-32 X 3/4``		Appelez-nous	-
16	284164		Support Rod-main Top		Appelez-nous	-
17	285945		Clip (2 Req)		Appelez-nous	-
18	328354		Main Top (platinum)		Appelez-nous	-
18	327356		Main Top (chrome)		Appelez-nous	-
18	328353		Main Top (toast)		Appelez-nous	-
18	326530		Main Top (white)		Appelez-nous	-
18	326531		Main Top (almond)		Appelez-nous	-
19	WPW10196405		8`` Chrome Bowl (rt. Front & Lt. Rear)   (Replaces: 304969)			Immediately	$ 15.56
20	325503		8`` Surface Unit (240 Volt-208 Volt) Rt. Front & Lt. Rear		Appelez-nous	-
21	330031		Terminal Block W/wire Lead (4 Req)   (Replaces: 318960)			Immediately	$ 14.48
22	299632		Screw 7-32x5/16``		Appelez-nous	-
23	318872		Bracket-terminal Block (4 Req)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
