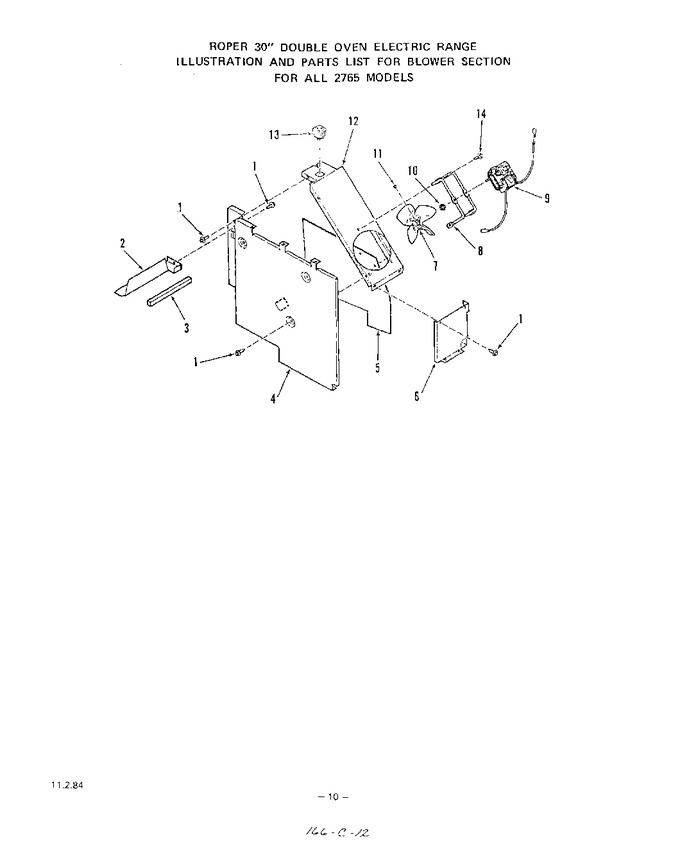

09 - Blower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
2	325743		Baffle - Airway		Appelez-nous	-
3	305016		Foam Strip		Appelez-nous	-
4	325380		Side - Compartment		Appelez-nous	-
5	325723		Air Duct		Appelez-nous	-
6	326281		Front - Blower Mounting Plate		Appelez-nous	-
7	326280		Fan Blade		Appelez-nous	-
8	327321		Support-blower Motor		Appelez-nous	-
9	326278		Motor - Blower		Appelez-nous	-
10	236313		Keps Nut 6-32		Appelez-nous	-
11	70286		Set Screw 10-32		Appelez-nous	-
12	325382		Mounting Plate - Blower		Appelez-nous	-
13	328870		Convenience Outlet (with Wire Leads (1 Req))		Appelez-nous	-
13	109180		Convenience Outlet (without Wire Leads) (1 Req)		Appelez-nous	-
14	324342		Main Top		Appelez-nous	-
14	316365		Screw 10-32x7/16``		Appelez-nous	-
14	328927		Main		Appelez-nous	-
