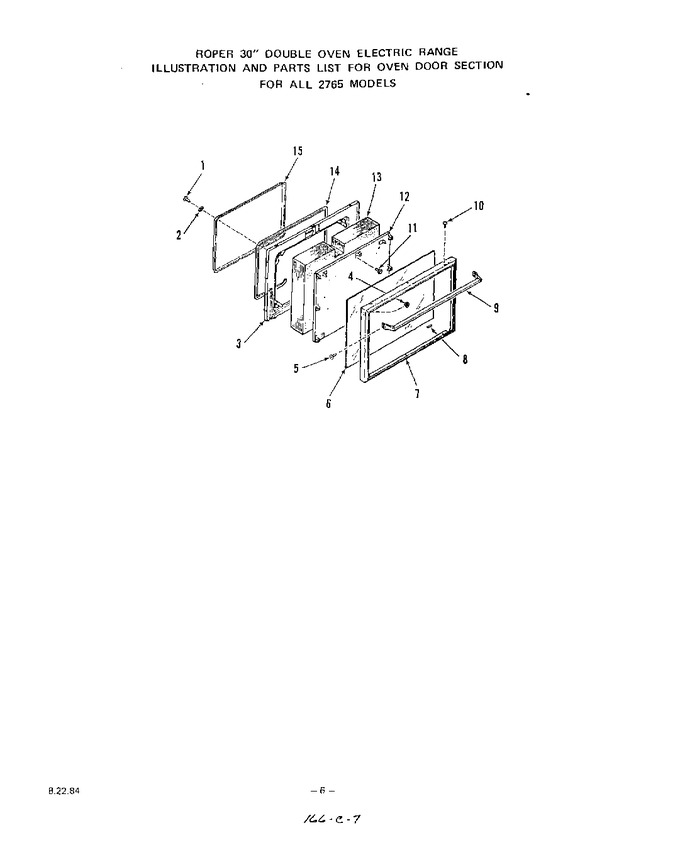

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 102376 | Screw 10-32 X 1/2`` |
|
- | |||||
| 2 | 21067 | Washer |
|
- | |||||
| 3 | 325951 | Lining-oven Door |
|
- | |||||
| 4 | 239764 | Keps Nut 8-32 (4 Req) |
|
- | |||||
| 5 | 319447 | Screw 8-32x1/2`` (4 Req) |
|
- | |||||
| 6 | 320736 | Glass-oven Door |
|
- | |||||
| 7 | 326001 | Frame-oven Door |
|
- | |||||
| 8 | 112370 | Cushion |
|
- | |||||
| 9 | 303342 | Handle |
|
- | |||||
| 10 | 316849 | Screw-10-32x1/2`` |
|
- | |||||
| 11 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 12 | 325987 | Retainer-insulation |
|
- | |||||
| 13 | 326000 | Insulation |
|
- | |||||
| 14 | 292244 | Gasket |
|
- | |||||
| 15 | 326179 | Plug-oven Door Lining |
|
- |
