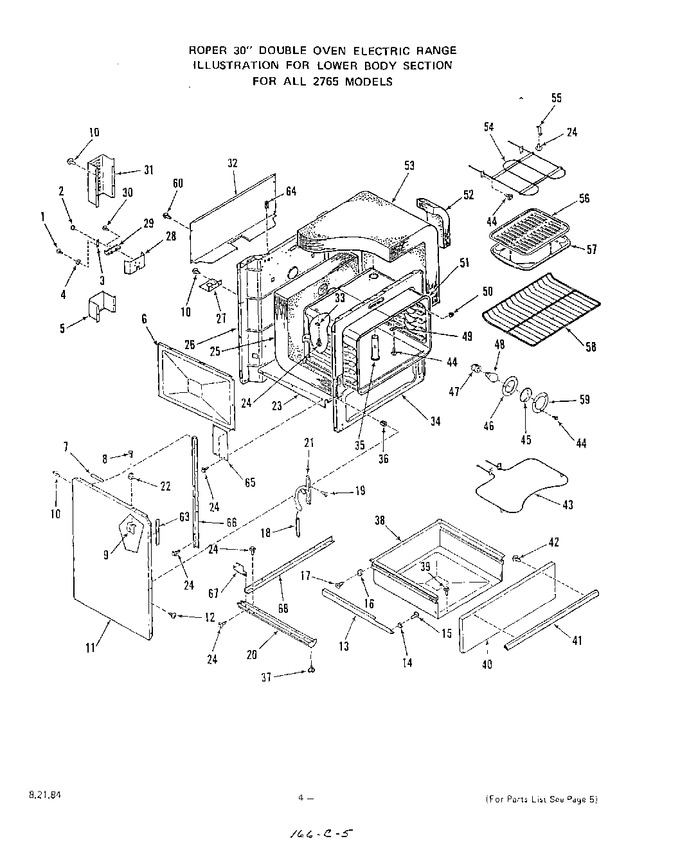

05 - Lower Body
06 - Oven Door
07 - Upper Oven Pedestal
08 - Control Panel
09 - Blower
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 313191 | Screw 10-32x7/16`` |
|
- | |||||
| 2 | 97816 | Hex Nut 10-32 |
|
- | |||||
| 3 | 327255 | Ground Strap |
|
- | |||||
| 4 | 299425 | Washer |
|
- | |||||
| 5 | 327258 | Wire Shield-lower |
|
- | |||||
| 6 | 324188 | Retainer-insulation (lt. Or Rt.) |
|
- | |||||
| 7 | 326914 | Spacer-main Top (lt. Or Rt.) |
|
- | |||||
| 8 | 107551 | Screw 6-32x7/8`` |
|
- | |||||
| 9 | 326516 | Bracket-body Side (lt. Or Rt.) |
|
- | |||||
| 10 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 11 | 327939 | Body Side (lt. Or Rt.) (platinum) |
|
- | |||||
| 11 | 326102 | Body Side (lt. Or Rt.) (black) |
|
- | |||||
| 11 | 327940 | Body Side (lt. Or Rt.) (toast) |
|
- | |||||
| 11 | 326055 | Body Side (lt. Or Rt.) (white) |
|
- | |||||
| 11 | 326059 | Body Side (lt. Or Rt.) (almond) |
|
- | |||||
| 12 | 314124 | Screw 8abx5/8`` |
|
- | |||||
| 13 | 311441 | Support-storage Drawer (lt. Or Rt.) |
|
- | |||||
| 14 | 281914 | Slide Block-front (lt. Or Rt.) |
|
- | |||||
| 15 | 295849 | Screw 10-32x17/32`` |
|
- | |||||
| 16 | 281913 | Slide Block-rear (lt. Or Rt.) |
|
- | |||||
| 17 | DE81-02123A | Screw 8 - 32 X 3/8`` (Replaces: 102563) |
|
$ 1.66 | |||||
| 18 | 326964 | Spring-oven Door (lt. Or Rt.) |
|
- | |||||
| 19 | 112013 | Screw 10-32 X 5/8`` |
|
- | |||||
| 20 | 327020 | Base W/leg Levelers (lt. Or Rt.) |
|
- | |||||
| 21 | 326013 | Hinge-oven Door (left) |
|
- | |||||
| 21 | 326012 | Hinge-oven Door (right) |
|
- | |||||
| 22 | 326513 | Strike-main Top (lt. Or Rt.) |
|
- | |||||
| 23 | 313281 | Insulation Retainer-bottom |
|
- | |||||
| 24 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 25 | 308861 | Insulation-oven Bottom & Back (1 Piece) |
|
- | |||||
| 26 | 326350 | Main Back |
|
- | |||||
| 27 | 327259 | Range Service Mounting Plate |
|
- | |||||
| 28 | 327242 | Insulator-service Cord |
|
- | |||||
| 29 | 290105 | Junction Block |
|
- | |||||
| 30 | 313190 | Screw 10-32x1`` |
|
- | |||||
| 31 | 327235 | Wire Shield-upper |
|
- | |||||
| 32 | 327389 | Wire Shield |
|
- | |||||
| 33 | 237762 | Plate-thermostat Bulb Cover |
|
- | |||||
| 34 | 327409 | Front Frame |
|
- | |||||
| 35 | 308822 | Vent Tube |
|
- | |||||
| 36 | 330031 | Expansion Nut Spacer (6 Req) (Replaces: 312605) |
|
Immediately | $ 14.48 | ||||
| 37 | 326125 | Leg Leveler (4 Req) |
|
- | |||||
| 38 | 296150 | Storage Drawer |
|
- | |||||
| 39 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 40 | 326073 | Front Panel-storage Drawer (white) |
|
- | |||||
| 40 | 326077 | Front Panel-storage Drawer (almond) |
|
- | |||||
| 40 | 326078 | Front Panel-storage Drawer (black) |
|
- | |||||
| 40 | 328347 | Front Panel-storage Drawer (toast) |
|
- | |||||
| 40 | 328355 | Front Panel-storage Drawer (platinum) |
|
- | |||||
| 41 | 292240 | Handle |
|
- | |||||
| 42 | 295850 | Screw 10 - 32 X 7/16`` |
|
- | |||||
| 43 | WG02F05414 | Bake Element (Replaces: 325883) |
|
Immediately | $ 111.99 | ||||
| 44 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 45 | 114989 | Lens-oven Lamp |
|
- | |||||
| 46 | 229371 | Gasket-lens |
|
- | |||||
| 47 | 87883 | Holder-oven Lamp |
|
- | |||||
| 48 | DA96-01243C | Oven Lamp Bulb (Replaces: 111257) |
|
$ 144.00 | |||||
| 49 | 304835 | Cover |
|
- | |||||
| 50 | 238052 | Retainer-thermostat Bulb (2 Req) |
|
- | |||||
| 51 | 325766 | Oven Body |
|
- | |||||
| 52 | 316951 | Insulation (rt. Or Lt.) |
|
- | |||||
| 53 | 308860 | Insulation-oven Top & Sides (1 Piece) |
|
- | |||||
| 54 | 326938 | Broiler Element |
|
- | |||||
| 55 | 324808 | Support-broiler Element (2 Req) |
|
- | |||||
| 56 | 326297 | Broiler Pan Grid |
|
- | |||||
| 57 | 326300 | Broiler Pan |
|
- | |||||
| 58 | 326069 | Oven Rack (2 Req) |
|
- | |||||
| 59 | 229372 | Retainer-oven Light Lens |
|
- | |||||
| 60 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 63 | 327378 | Stiffener-body Side (lt. Or Rt.) |
|
- | |||||
| 64 | 327649 | Clip-capillary Tube |
|
- | |||||
| 65 | 324305 | Shield-hinge (lt. Or Rt.) |
|
- | |||||
| 66 | 327035 | Support-body Side (lt. Or Rt.) |
|
- | |||||
| 67 | 327022 | Bracket-support & Base (left) |
|
- | |||||
| 67 | 327024 | Bracket-support & Base (right) |
|
- | |||||
| 68 | 327026 | Strap-main Back & Base |
|
- |
