SELECT A DIAGRAM

Diagram for 02 - Main Top
02 - Main Top

Diagram for 03 - Heavy Duty Canning Element , Grid
03 - Heavy Duty Canning Element , Grid

Diagram for 04 - Power Lock
04 - Power Lock

Diagram for 05 - Lower Body
05 - Lower Body

Diagram for 06 - Oven Door
06 - Oven Door

Diagram for 07 - Upper Oven Pedestal
07 - Upper Oven Pedestal

Diagram for 08 - Control Panel
08 - Control Panel

Diagram for 09 - Blower
09 - Blower


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 326303 Box - Auxiliary Thermostat Appelez-nous -
2 325308 Spacer (4 Req) Appelez-nous -
3 313190 Screw 10-32x1`` Appelez-nous -
4 327644 Upper Oven Body Side (black - Right) Appelez-nous -
4 328211 Upper Oven Body Side (platinum - Left) Appelez-nous -
4 328210 Upper Oven Body Side (toast - Right) Appelez-nous -
4 328209 Upper Oven Body Side (toast - Left) Appelez-nous -
4 325320 Upper Oven Body Side (almond - Right) Appelez-nous -
4 325314 Upper Oven Body Side (almond - Left) Appelez-nous -
4 325316 Upper Oven Body Side (white - Right) Appelez-nous -
4 325310 Upper Oven Body Side (white - Left) Appelez-nous -
4 327643 Upper Oven Body Side (black - Left) Appelez-nous -
4 328212 Upper Oven Body Side (platinum - Right) Appelez-nous -
5 325283 Pedestal-upper Oven (white - Right) Appelez-nous -
5 325289 Pedestal-upper Oven (white - Left) Appelez-nous -
5 325293 Pedestal-upper Oven (almond - Left) Appelez-nous -
5 325287 Pedestal-upper Oven (almond - Right) Appelez-nous -
5 328127 Pedestal-upper Oven (toast - Left) Appelez-nous -
5 328128 Pedestal-upper Oven (toast - Right) Appelez-nous -
5 328213 Pedestal-upper Oven (platinum - Left) Appelez-nous -
5 328214 Pedestal-upper Oven (platinum - Right) Appelez-nous -
5 327641 Pedestal-upper Oven (black - Left) Appelez-nous -
5 327642 Pedestal-upper Oven (black - Right) Appelez-nous -
6 327621 Screw 6-20x3/8`` (nickel Finish) Appelez-nous -
6 329382 Screw 6-20x3/8`` (black Finish) Appelez-nous -
7 325492 Side Trim (left) Appelez-nous -
7 325330 Side Trim (right) Appelez-nous -
8 101523 Pop Rivet Appelez-nous -
9 285523 Retainer-lt. Or Rt. Appelez-nous -
10 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 7.16

11 322992 Cover Plate Appelez-nous -
12 325773 Wire Cover - Upper Oven Appelez-nous -
13 326696 Foam Strip-(2 Req) Appelez-nous -
14 329068 Wire Cover-fluorescent Lamp Appelez-nous -
15 71734 Fluorescent Lamp (20 W - 24``) Appelez-nous -
16 327791 Holder-fluorescent Lamp (right) Appelez-nous -
16 327790 Holder-fluorescent Lamp (left) Appelez-nous -
17 324746 Bracket-fluorescent Lamp (rt. Or Lt.) Appelez-nous -
18 321107 Shield-wire In-Stock Immediately $ 41.96

19 277608 Fuse Holder Appelez-nous -
20 DE81-09655A Fuse-15 Amp.   (Replaces: 106208) Special Order $ 113.15

21 326697 Foam Strip (left-airway Side) Appelez-nous -
21 306543 Foam Strip (right-airway Side) Appelez-nous -
22 322933 End-vent (left) Appelez-nous -
22 322935 End - Vent (right) Appelez-nous -
23 325726 Airway - Side (left) Appelez-nous -
23 325728 Airway - Side (right) Appelez-nous -
24 327028 Support-upper Oven (left) Appelez-nous -
24 327030 Support-upper Oven (right) Appelez-nous -
25 325388 Brace-cabinet Side (lt. Or Rt.) Appelez-nous -
26 326417 Cover - Wire Support Appelez-nous -
27 230710 Screw 4-40x1/4`` Appelez-nous -
28 325401 Auxiliary Thermostat Appelez-nous -
29 239114 Screw 10-32x1/2`` Appelez-nous -
30 324504 Foam Strip Appelez-nous -
31 328020 Foam Strip Appelez-nous -
32 328492 Support-microwave (4 Req) Appelez-nous -
33 WP330190 Base-microwave   (Replaces: 329404) Special Order $ 38.10

34 328021 Foam Strip-lt. Or Rt. Appelez-nous -
35 325301 Stiffener Appelez-nous -
36 322937 Baffle - Vent Appelez-nous -
37 322949 Vent Side-left Appelez-nous -
38 320261 Bottom-vent Appelez-nous -
39 325337 End Cap (left) Appelez-nous -
39 325338 End Cap (right) Appelez-nous -
40 316365 Screw 10-32x7/16`` Appelez-nous -
41 320131 Upper Retainer-lamp Glass (almond) Appelez-nous -
41 320127 Upper Retainer-lamp Glass (white) Appelez-nous -
41 329671 Upper Retainer-lamp Glass (black) Appelez-nous -
41 328219 Upper Retainer-lamp Glass (platinum) Appelez-nous -
41 328222 Upper Retainer-lamp Glass (toast) Appelez-nous -
42 328322 Cover-vent (platinum) Appelez-nous -
42 327582 Cover-vent (almond) Appelez-nous -
42 327578 Cover-vent (white) Appelez-nous -
42 328426 Cover-vent (black) Appelez-nous -
42 328321 Cover-vent (toast) Appelez-nous -
43 329382 Screw 6-20x3/8`` Appelez-nous -
44 329852 Lamp Glass Appelez-nous -
45 324307 Lower Retainer-lamp Glass Appelez-nous -
46 286327 Spring - Lamp Glass End Trim (lt Or Rt) Appelez-nous -
47 299979 End Trim - Lamp Glass (lt Or Rt) Appelez-nous -
48 327639 Trim-filter (black) Appelez-nous -
48 323824 Trim-filter (almond) Appelez-nous -
48 323820 Trim-filter (white) Appelez-nous -
48 328216 Trim-filter (platinum) Appelez-nous -
48 328130 Trim-filter (toast) Appelez-nous -
49 325471 Lower Trim Appelez-nous -
50 320257 Vent Side-rt. Appelez-nous -
51 288197 Plug Button (2 Req) Appelez-nous -
52 87403 Knurled Nut (2 Req) Appelez-nous -
53 327797 Oven Cabinet Bottom Appelez-nous -
54 327799 Insulation-cabinet Bottom Appelez-nous -
55 326031 Insulation Appelez-nous -
56 325029 Foam Strip Appelez-nous -
57 320476 Rear Cover-oven Top (white) Appelez-nous -
57 321672 Rear Cover-oven Top (almond) Appelez-nous -
57 328205 Rear Cover-oven Top (toast) Appelez-nous -
57 328206 Rear Cover-oven Top (platinum) Appelez-nous -
57 327638 Rear Cover-oven Top (black) Appelez-nous -
58 327640 Oven Top Cover (black) Appelez-nous -
58 325322 Oven Top Cover (white) Appelez-nous -
58 325326 Oven Top Cover (almond) Appelez-nous -
58 328207 Oven Top Cover (toast) Appelez-nous -
58 328208 Oven Top Cover (platinum) Appelez-nous -
59 325328 Top Trim Appelez-nous -
60 307060 Push Switch-fluorescent Lamp Appelez-nous -
61 306333 Push Switch (oven Lamp) Appelez-nous -
62 236129 Pal Nut 3/8-27 (2 Req) Appelez-nous -
63 98186 Ballast Appelez-nous -
64 239802 Oven Relay Appelez-nous -
65 237762 Cover Plate Appelez-nous -
66 DE81-07393A Screw 10 - 32 X 17/32``   (Replaces: 102428) Special Order $ 174.11

67 293428 Fixed Input Control Appelez-nous -
68 78565 Screw 8-32x3/16`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

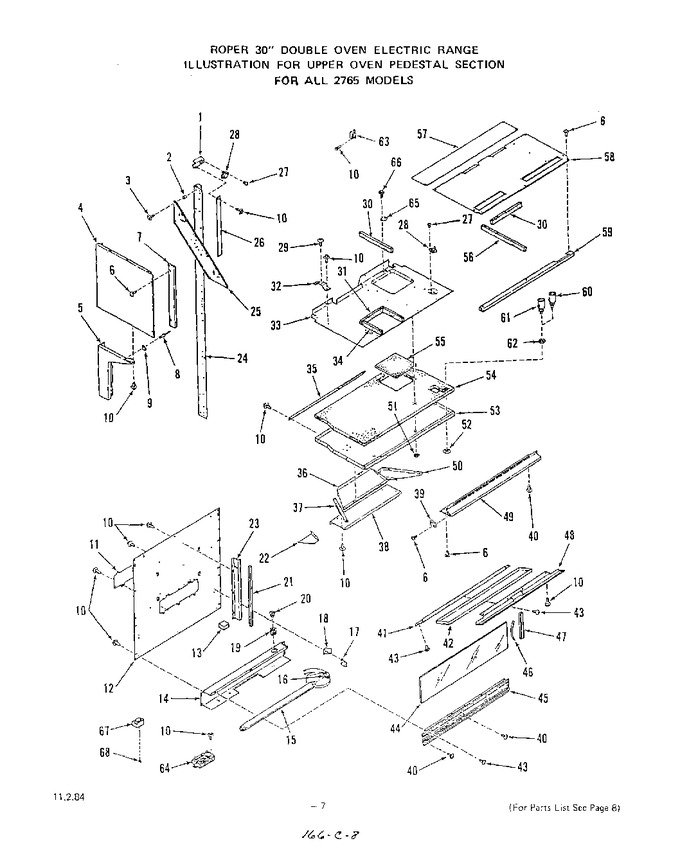

Diagram for 2765W0A
