SELECT A DIAGRAM

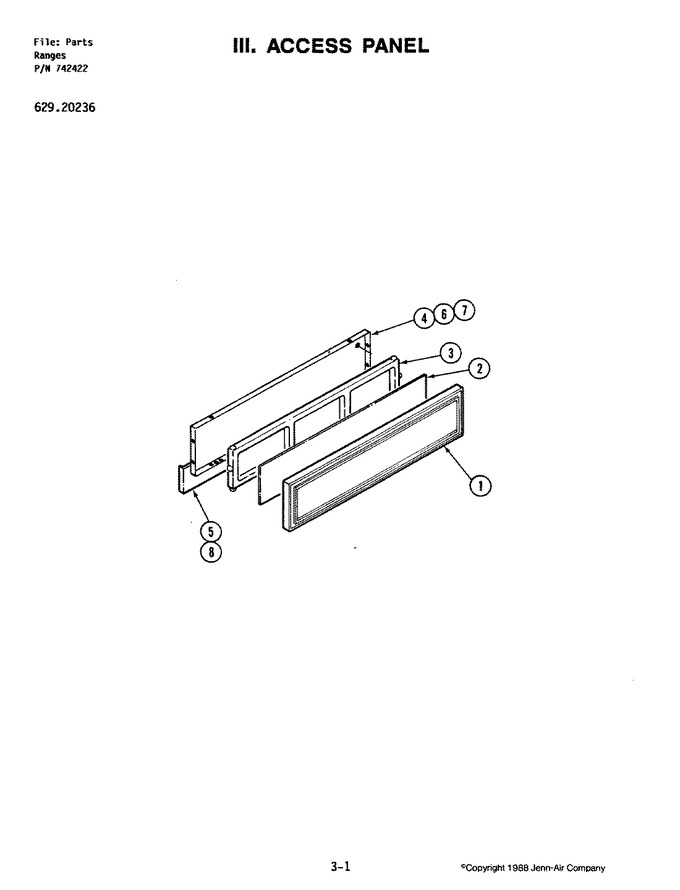

01 - Access Panel
02 - Blower Motor
03 - Blower Motor
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | DE81-07204A | Frame,door (Replaces: 703434) |
|
$ 494.35 | |||||
| 2 | 703435 | Panel, Base |
|
- | |||||
| 3 | Y702896 | Spacer, Base Door |
|
- | |||||
| 4 | Y703965 | Liner, Door |
|
- | |||||
| 5 | Y702744 | Panel, Kick |
|
- | |||||
| 6 | 71002058 | Screw (Replaces: Y702124) |
|
$ 5.82 | |||||
| 7 | Y702633 | Stud, Ball |
|
- | |||||
| 8 | W11233072 | Screw (Replaces: Y707347) |
|
Immediately | $ 12.62 |
