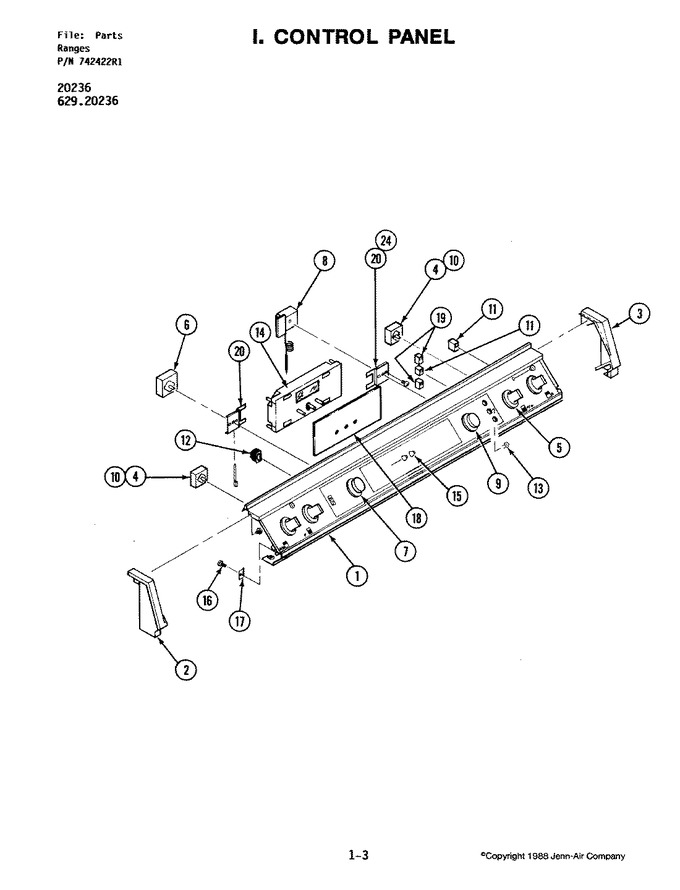

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	704838		Panel, Control		Appelez-nous	-
2	702388		Cap, End (lt)		Appelez-nous	-
3	Y702387		Cap, End (rt)		Appelez-nous	-
4	703523		Wire, Orange (right)		Appelez-nous	-
4	W11120791		Switch, Infinite   (Replaces: 703650)			Immediately	$ 98.55
5	12200034		Knob, Infinite Switch   (Replaces: Y704839)				$ 95.17
6	703271		Switch, Selector		Appelez-nous	-
6	703749		Wire, Orange		Appelez-nous	-
7	WPY704841		Knob, Selector Switch   (Replaces: Y704841)				$ 40.37
8	703145		Thermostat		Appelez-nous	-
8	704243		Wire, Brown		Appelez-nous	-
9	Y704840		Knob, Thermostat				$ 21.24
10	71002058		Screw   (Replaces: Y702124)				$ 5.82
11	Y702614		Light, Surface Indicator 120v		Appelez-nous	-
12	Y704311		Switch, Oven Light (blk)		Appelez-nous	-
13	Y702615		Lens, Pilot Light		Appelez-nous	-
14	DE81-09068A		Clock   (Replaces: 702390)				$ 434.75
15	Y702547		Knob, Clock		Appelez-nous	-
15	WPW10339879		Tie, Cable   (Replaces: 701678)				$ 7.11
16	Y702976		Screw, Hex		Appelez-nous	-
17	702616		Bracket, Retaining		Appelez-nous	-
18	702771		Lens, Clock		Appelez-nous	-
19	Y704222		Light, Oven Pilot (240v)		Appelez-nous	-
19	704895		Harness, Wire		Appelez-nous	-
20	702617		Bracket, Clock				$ 300.05
20	704244		Wire, Blue		Appelez-nous	-
20	703752		Wire, Resistor Therm.		Appelez-nous	-
