01 - Access Panel
02 - Blower Motor
03 - Blower Motor

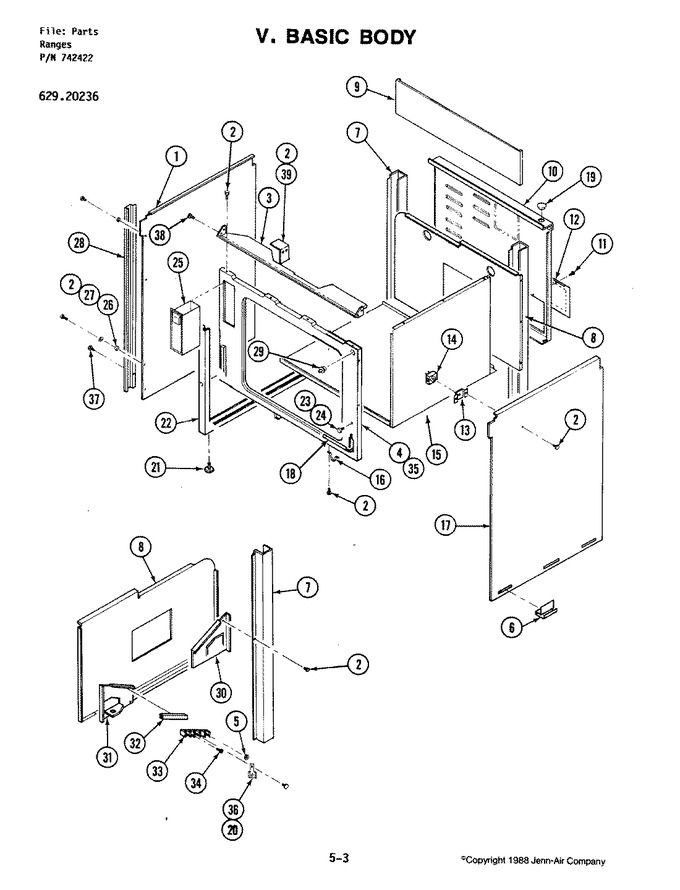

04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y702301 | Panel, Side (lt) | 1 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 3 | 712002 | Angle, Mount | 1 |
|
- | ||||
| 4 | 702329 | Closure, Front | 1 |
|
- | ||||
| 5 | 712081 | Nut, Hex | 1 |
|
- | ||||
| 6 | Y702476 | Clip, Spring | 1 |
|
- | ||||
| 7 | 704296 | Support,tube | 1 |
|
- | ||||
| 8 | Y702306 | Back, Inner | 1 |
|
- | ||||
| 9 | Y702345 | Plate, Back | 1 |
|
- | ||||
| 10 | 702307 | Cover, Rear (lower) | 1 |
|
- | ||||
| 11 | 703958 | Screw | 1 |
|
- | ||||
| 12 | 702333 | Cover, Access(r.h) | 1 |
|
- | ||||
| 13 | 704337 | Bracket | 1 |
|
- | ||||
| 14 | 704355 | Switch, Broil Cycle | 1 |
|
- | ||||
| 14 | 704335 | Screw | 1 |
|
- | ||||
| 15 | Y702319 | Panel, Bottom & Side (rt) | 1 |
|
- | ||||
| 15 | 702336 | Angle, Oven Support | 1 |
|
- | ||||
| 16 | 702658 | Bracket, Hat | 1 |
|
- | ||||
| 17 | DE81-09758A | Panel, Side (rt) (Replaces: 702300) | 1 |
|
$ 1,127.72 | ||||
| 18 | Y703419 | Hinge | 1 |
|
- | ||||
| 19 | Y702696 | Strain, Relief | 1 |
|
- | ||||
| 20 | WP71001171 | Screw (Replaces: Y712004) | 1 |
|
$ 6.26 | ||||
| 21 | W11117769 | Leveler,adjust (Replaces: Y708696) | 1 |
|
Immediately | $ 16.61 | |||
| 21 | Y04100573 | Leveler, Leg | 1 |
|
$ 25.32 | ||||
| 22 | 712000 | Rail, Support Assembly | 1 |
|
- | ||||
| 22 | 708763 | Clip----s | 1 |
|
- | ||||
| 23 | Y703449 | Washer | 1 |
|
- | ||||
| 24 | 715870 | Screw | 1 |
|
- | ||||
| 25 | Y712001 | Container,grease Assembly | 1 |
|
- | ||||
| 26 | 00702462 | Washer, Conical (Replaces: 702462) | 1 |
|
$ 1,015.54 | ||||
| 27 | 712005 | Washer, Flat | 1 |
|
- | ||||
| 28 | 702337 | Trim, Side | 1 |
|
- | ||||
| 29 | 701666 | Switch, Door | 1 |
|
- | ||||
| 30 | 702557 | Gussett (lt) | 1 |
|
- | ||||
| 31 | 702556 | Gussett (rt) | 1 |
|
- | ||||
| 32 | 702898 | Insulator | 1 |
|
- | ||||
| 33 | WP8203546 | Block, Terminal (Replaces: Y702284) | 1 |
|
Immediately | $ 27.12 | |||
| 34 | WP67006908 | Screw (Replaces: Y703002) | 1 |
|
Immediately | $ 7.16 | |||
| 35 | W11233072 | Screw (Replaces: Y708733) | 1 |
|
Immediately | $ 12.62 | |||
| 36 | Y702335 | Strap, Ground | 1 |
|
- | ||||
| 37 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 38 | 702731 | Screw | 1 |
|
- | ||||
| 38 | 712239 | Kit,backsplash Adaptor | 1 |
|
- | ||||
| 39 | 703648 | Harness, Backsplash | 1 |
|
- | ||||
| 39 | DE81-08871A | Enclosure, Side (right) (Replaces: 702183) | 1 |
|
$ 526.73 |
