Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y702542 Bracket, Mounting Motor Appelez-nous -
2 Y702549 Motor, Fan Appelez-nous -
3 Y702525 Blade, Fan Appelez-nous -
4 Y702345 Plate, Back Appelez-nous -
5 WP90767 Screw   (Replaces: 715773) In-Stock Immediately $ 7.04

6 703648 Harness, Backsplash Appelez-nous -
6 M0282005 Nut, Hex   (Replaces: 701719) Special Order $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

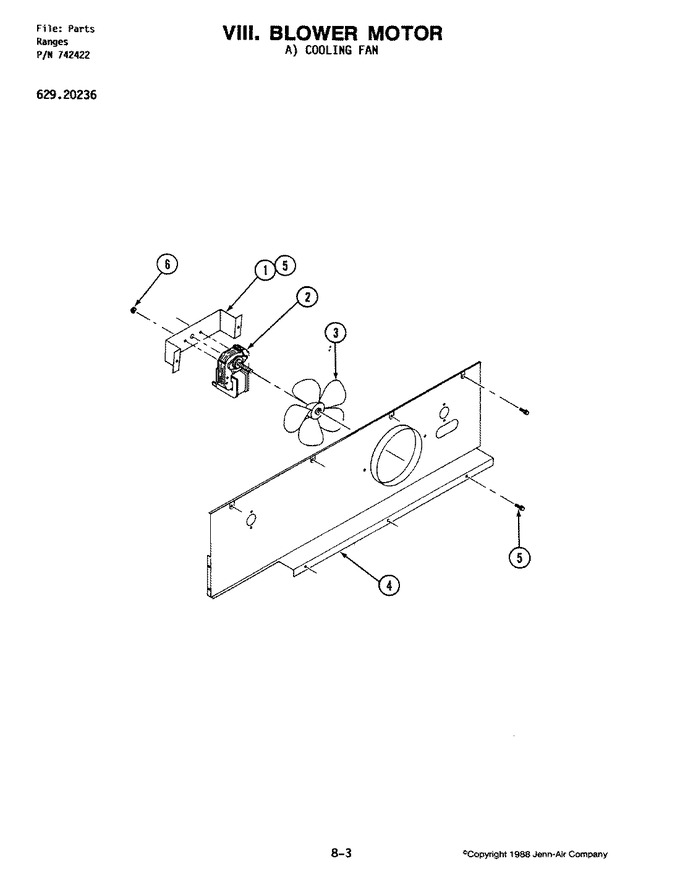

Diagram for 20236
