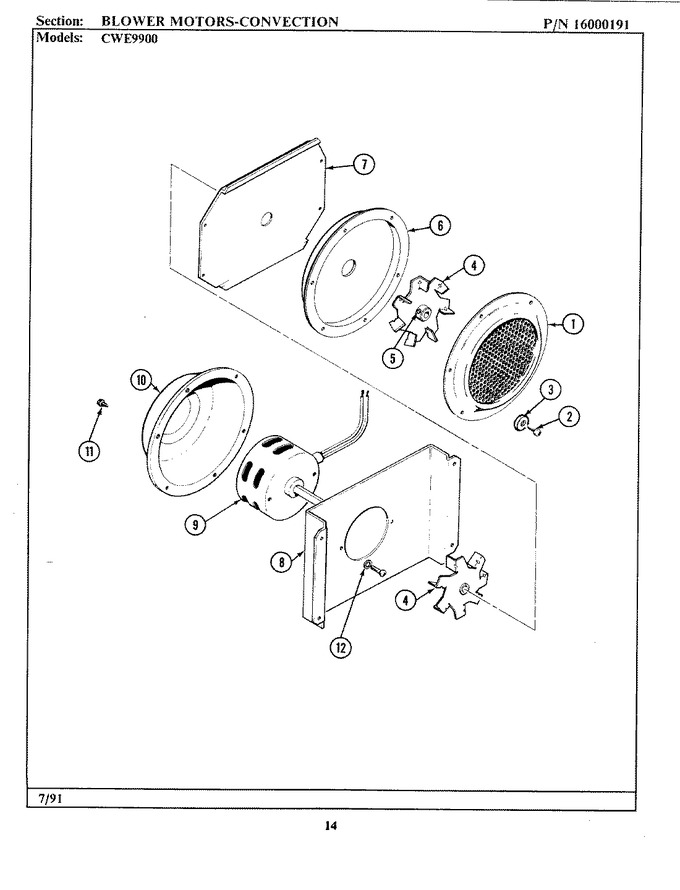

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	701707		Plate, Convection Front		Appelez-nous	-
2	WP1163283		Screw   (Replaces: Y703741)				$ 6.47
3	WP74003976		Washer   (Replaces: 702592)				$ 6.47
4	701711		Wheel, Convection		Appelez-nous	-
5	WP488234		Screw   (Replaces: 708861)				$ 6.07
6	DE81-03744A		Plate, Convection Back   (Replaces: 701712)				$ 312.62
7	DE81-03745A		Cover, Motor Front   (Replaces: 701713)				$ 251.40
8	Y700601		Plate, Motor Mount		Appelez-nous	-
9	Y704972		Motor, Convect		Appelez-nous	-
10	701716		Cover, Motor		Appelez-nous	-
11	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 7.15
12	715910		Washer, Lock		Appelez-nous	-
