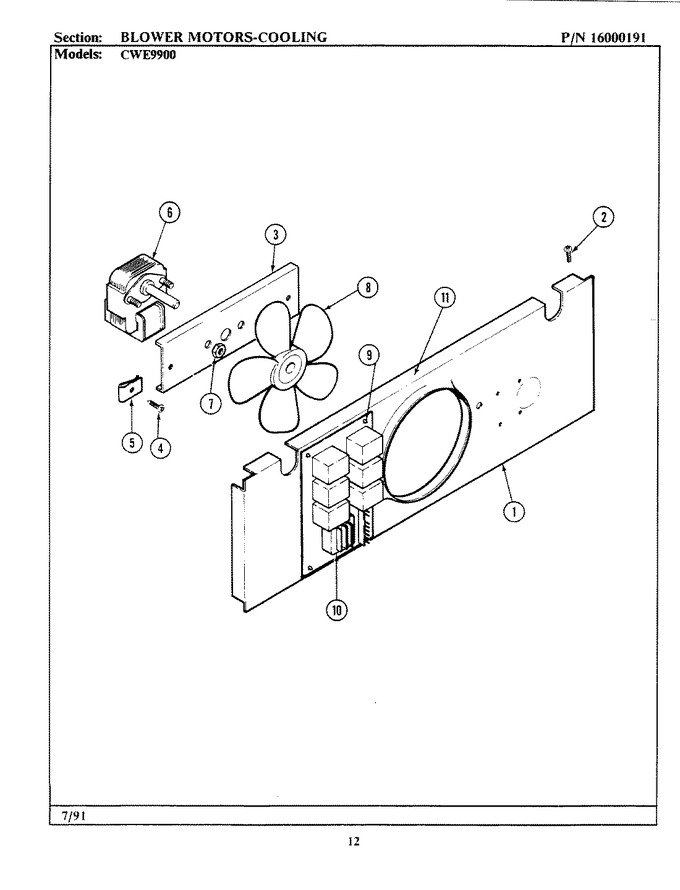

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704725 | Shroud, Fan |
|
- | |||||
| 2 | WP12990527 | Screw (Replaces: Y708955) |
|
Immediately | $ 7.15 | ||||
| 3 | Y704732 | Mount, Motor |
|
- | |||||
| 4 | WP90767 | Screw (Replaces: 715773) |
|
Immediately | $ 7.04 | ||||
| 5 | Y700556 | Clip, J |
|
- | |||||
| 6 | Y701721 | Motor, Fan |
|
- | |||||
| 7 | M0282005 | Nut, Hex (Replaces: 701719) |
|
$ 7.07 | |||||
| 8 | 701718 | Blade, Fan |
|
- | |||||
| 9 | Y704706 | Support, Circuit Board |
|
- | |||||
| 10 | Y704710 | Relay, Transformer Assy. |
|
- | |||||
| 11 | Y715957 | Foam, Urethane |
|
- |
