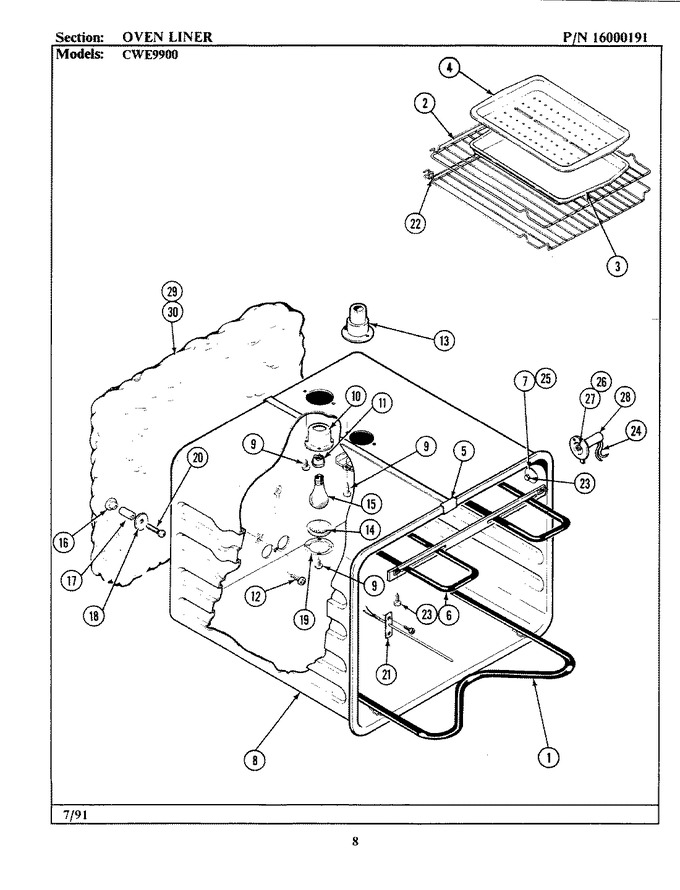

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100020		Element, Bake 240v   (Replaces: Y701724)			Immediately	$ 136.96
2	Y704661		Rack, Oven		Appelez-nous	-
3	4396923		Pan, Broil   (Replaces: 703164)			Immediately	$ 52.04
4	4396923		Insert, Broil Pan   (Replaces: 703165)			Immediately	$ 52.04
5	Y702618		Clip, Oven		Appelez-nous	-
6	WPY04100514		Element, Broil   (Replaces: Y704667)				$ 138.97
7	DE81-03805A		Cover (upper)   (Replaces: 701732)				$ 113.65
8	Y712594		Liner, Oven		Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y703741)				$ 6.47
10	704142		Receptacle, Holder		Appelez-nous	-
11	Y704145		Receptacle, Snap-in		Appelez-nous	-
12	WP179051		Screw   (Replaces: 708764)			Immediately	$ 7.16
13	701738		Tube, Vent		Appelez-nous	-
14	Y704143		Lens, Light		Appelez-nous	-
15	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)			Immediately	$ 16.80
16	715294		Nut, Tee		Appelez-nous	-
17	701741		Spacer, Oven		Appelez-nous	-
18	701742		Plate, Grounding		Appelez-nous	-
19	Y704144		Retainer, Lens		Appelez-nous	-
20	705170		Screw		Appelez-nous	-
21	12001656		Sensor, Oven   (Replaces: Y704657)			Immediately	$ 39.55
22	Y704663		Rack, Oven (offset)		Appelez-nous	-
23	703773		Screw		Appelez-nous	-
24	704822		Harness, Probe		Appelez-nous	-
25	703007		Standoff		Appelez-nous	-
26	701723		Probe, Jack		Appelez-nous	-
27	Y701731		Mount, Meat Probe		Appelez-nous	-
28	Y703022		Jack, Probe		Appelez-nous	-
29	701702		Insulation, Wrap		Appelez-nous	-
30	701703		Insulation, Rear		Appelez-nous	-
30	WP71001870		Probe, Meat   (Replaces: Y700884)				$ 201.71
