Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y704691 Cap, End (lt/blk) Appelez-nous -
1 Y704692 Cap, End (rt/blk) Appelez-nous -
2 WP7711P492-60 Knob, Clock (blk)   (Replaces: Y703910) Special Order $ 12.13

3 704690 Extrusion, Top (blk) Appelez-nous -
4 704714 Screw, Trim Appelez-nous -
5 701609 Angle, Attachment Appelez-nous -
6 04100168 Control Panel Appelez-nous -
7 Y704728 Clock Appelez-nous -
8 704730 Bracket, Switch Appelez-nous -
8 704797 Switch, Push (blk) Appelez-nous -
9 704688 Extrusion, Bottom Appelez-nous -
10 WP12990527 Screw   (Replaces: Y708955) In-Stock Immediately $ 7.15

11 704704 Harness, Wire (j2) Appelez-nous -
12 704798 Extension, Switch (blk) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

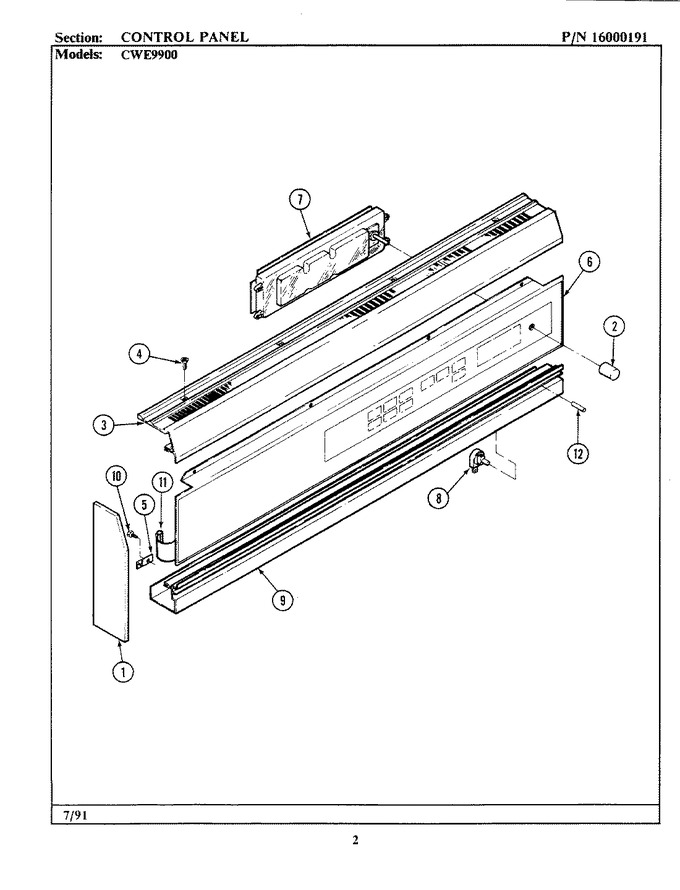

Diagram for CWE9900
