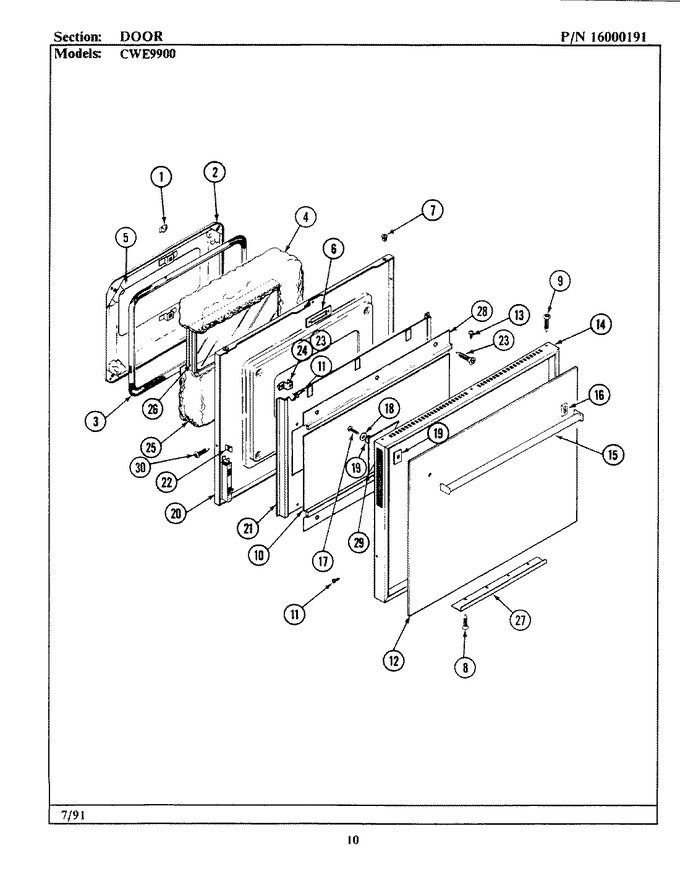

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705404		Clip		Appelez-nous	-
2	Y712208		Plug (lower)		Appelez-nous	-
3	WP701650		Seal, Oven Door   (Replaces: 701650)				$ 184.62
4	DE81-08905A		Insulation, Side   (Replaces: 701659)				$ 160.26
5	701660		Insulation, Top		Appelez-nous	-
6	Y712010		Plate, Latch (upper)		Appelez-nous	-
7	701643		Nut, Push In		Appelez-nous	-
7	DE81-07129A		Rivet, Accordion   (Replaces: 701641)				$ 128.48
8	Y700584		Screw		Appelez-nous	-
9	W11233072		Screw (blk)   (Replaces: Y704237)			Immediately	$ 12.62
10	Y704820		Glass, Baffle		Appelez-nous	-
11	W11233072		Screw   (Replaces: Y707347)			Immediately	$ 12.62
12	04100169		Glass, Screened		Appelez-nous	-
13	WPY706189		Screw (blk)   (Replaces: Y704238)			Immediately	$ 6.47
14	705133		Frame		Appelez-nous	-
15	04100170		Handle, Door		Appelez-nous	-
16	703862		Spacer, Door Cwe1000		Appelez-nous	-
17	W11164114		Screw (no.10-24) ----sub   (Replaces: Y703532)				$ 3.76
18	Y700446		Washer				$ 5.27
19	715939		Bushing		Appelez-nous	-
20	712188		Liner, Door		Appelez-nous	-
21	712250		Baffle		Appelez-nous	-
22	704487		Clip		Appelez-nous	-
23	WPY706189		Screw   (Replaces: 700906)			Immediately	$ 6.47
24	701652		Bracket, Stand-off		Appelez-nous	-
25	701658		Insulation, Bottom		Appelez-nous	-
26	701648		Window Pack		Appelez-nous	-
26	WP210720		Rivet   (Replaces: 701662)				$ 12.14
27	Y704498		Rail, Glass		Appelez-nous	-
28	Y704819		Retainer, Glass		Appelez-nous	-
29	704805		Gusset----na		Appelez-nous	-
30	Y704488		Screw (black)		Appelez-nous	-
30	704491		Tape, Foam		Appelez-nous	-
