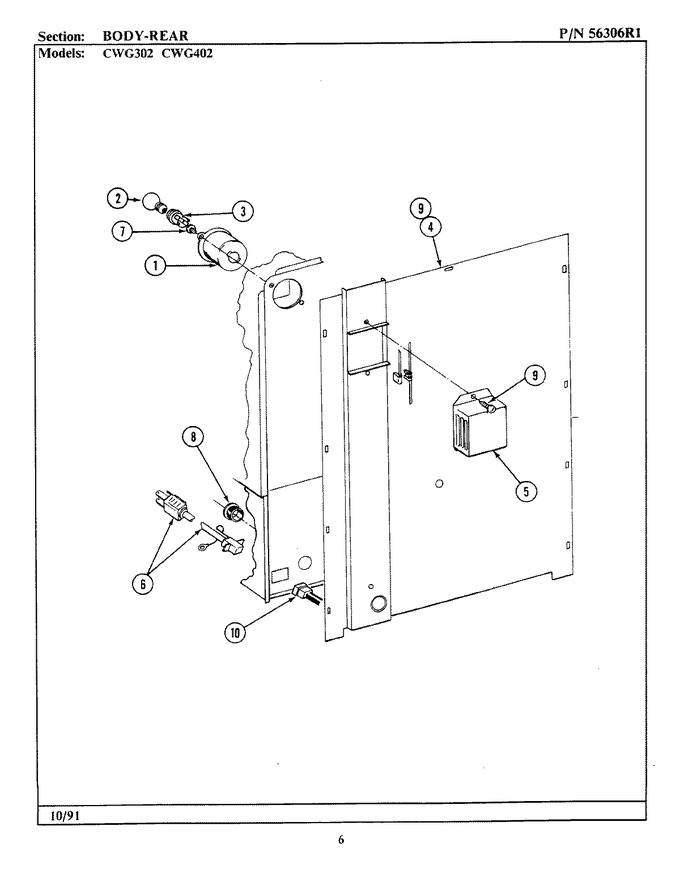

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8028P001-60 | Box, Oven Light | 00 |
|
- | ||||
| 2 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 00 |
|
Immediately | $ 1.98 | |||
| 3 | 7408P021-60 | Socket, Oven Light | 00 |
|
- | ||||
| 4 | 4002F101-51 | Back, Main | 00 |
|
- | ||||
| 5 | 4005F229-51 | Cover, Light Socket | 00 |
|
- | ||||
| 6 | 5700A139-60 | Power Cord | 00 |
|
- | ||||
| 6 | 5700A317-60 | Power Cord | 07 |
|
- | ||||
| 7 | WP7101P126-60 | Screw, No.10a X 1/2 (Replaces: 7101P178-60) | 00 |
|
Immediately | $ 6.85 | |||
| 8 | 8008P002-60 | Bushing, Snap | 00 |
|
- | ||||
| 9 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 | |||
| 10 | 7401P018-60 | Block | 07 |
|
- | ||||
| 10 | 7401P026-60 | Block, Disconnect So | 00 |
|
- |
