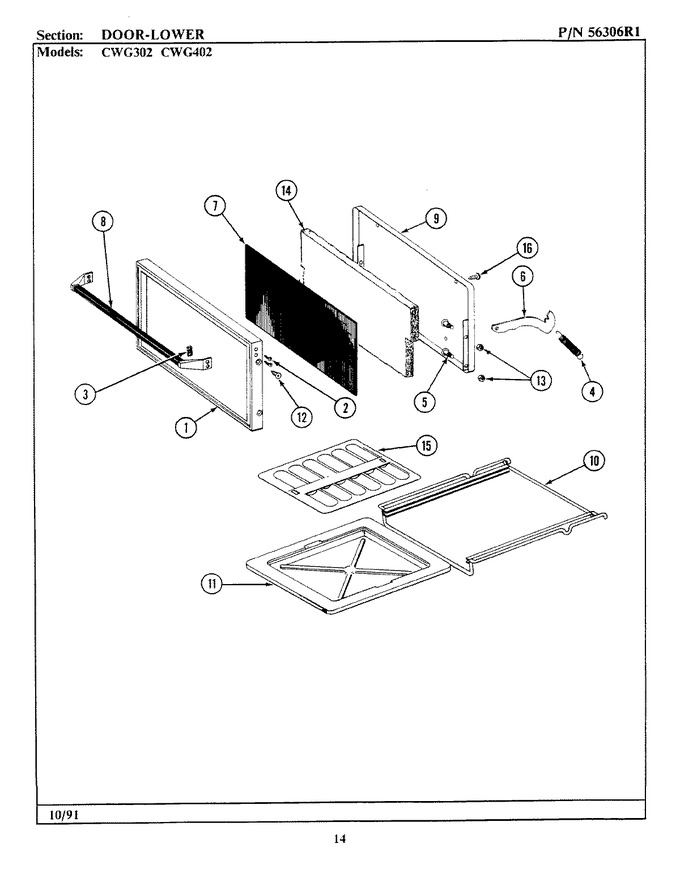

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7706P193-60 | Frame, Drwr | 00 |
|
- | ||||
| 2 | 7101P131-60 | Screw | 00 |
|
$ 5.81 | ||||
| 3 | M0282005 | Nut, 6-32 (Replaces: 7103P104-60) | 00 |
|
$ 7.07 | ||||
| 4 | 7803P034-60 | Spring, Broiler Door | 00 |
|
- | ||||
| 5 | 7101P134-60 | Bolt, Special | 00 |
|
- | ||||
| 6 | 3418F041-34 | Hinge | 00 |
|
- | ||||
| 7 | 3824F010-61 | Lug, Bro Door | 00 |
|
- | ||||
| 7 | 7914P003-60 | Glass, Broiler Door | 00 |
|
- | ||||
| 8 | 7701P036-60 | Handle, Door | 00 |
|
- | ||||
| 9 | 2404W024-15 | Lining - Broiler Door | 00 |
|
- | ||||
| 9 | 2404W024-23 | Lining, Broiler Door | 08 |
|
- | ||||
| 10 | 7801P018-60 | Rack, Broiler Pan | 00 |
|
- | ||||
| 11 | 4396923 | Pan, Broil (Replaces: 3401F015-23) | 08 |
|
Immediately | $ 52.04 | |||
| 11 | 4396923 | Pan, Broiler (Replaces: 3401F015-15) | 00 |
|
Immediately | $ 52.04 | |||
| 12 | 7101P154-60 | Screw, Ph Flat Hd | 00 |
|
- | ||||
| 13 | W10080180 | Nut Lock (Replaces: 7103P072-60) | 00 |
|
$ 12.13 | ||||
| 14 | 7002P067-60 | Insulation, Broiler Door | 00 |
|
- | ||||
| 15 | 3413F012-23 | Tray, Broiler | 08 |
|
- | ||||
| 15 | 4396923 | Insert, Broil Pan (Replaces: 3413F012-15) | 00 |
|
Immediately | $ 52.04 | |||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 00 |
|
Immediately | $ 6.85 |
