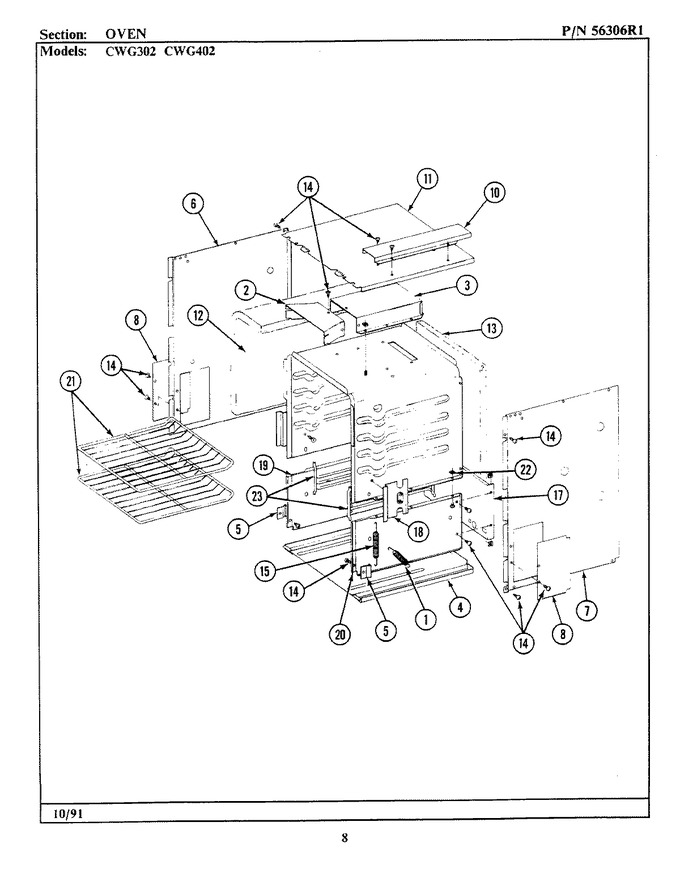

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7803P034-60		Spring, Broiler Door	00	Appelez-nous	-
2	3826F004-80		Extension, Vent Box	00	Appelez-nous	-
3	4006W078-51		Box, Vent	00	Appelez-nous	-
4	4003W018-51		Base Assy	00	Appelez-nous	-
5	3801F151-51		Bracket, Oven Door S	00	Appelez-nous	-
6	2618F061-51		Panel, End-lt	00	Appelez-nous	-
7	2618F062-51		Panel, End-rt	00	Appelez-nous	-
8	4005F224-51		Cover, Hinge	00	Appelez-nous	-
10	4005F240-51		Cover Wire Top	00	Appelez-nous	-
11	3804F056-51		Cover, Insulation	00	Appelez-nous	-
12	7002P083-60		Insulation, Oven Wrap	00	Appelez-nous	-
13	7002P089-60		Insulation, Oven Bac	00	Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)	00		Immediately	$ 6.85
15	7803P041-60		Spring, Oven Door	00	Appelez-nous	-
17	4002F135-23		Back Broiler Compartment	08	Appelez-nous	-
17	4002F135-15		Back Broiler Compartment	00	Appelez-nous	-
18	3604F119-61		Shield, Insulation	00	Appelez-nous	-
19	2228F003-23		Side, Broiler-lt	08	Appelez-nous	-
19	2228F003-15		Broiler, Side (left)	00	Appelez-nous	-
20	2228F004-15		Broiler, Side (right)	00	Appelez-nous	-
20	2228F004-23		Side, Broiler-rt	08	Appelez-nous	-
21	7801P020-60		Rack, Oven	00	Appelez-nous	-
22	M0282009		Nut 10-24   (Replaces: 7103P071-60)	00			$ 12.06
23	7808P003-60		Runner, Broiler Rack	00	Appelez-nous	-
NI	7112P053-60		Clip, Capillary	00	Appelez-nous	-
NI	7408P021-60		Socket, Oven Light	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
