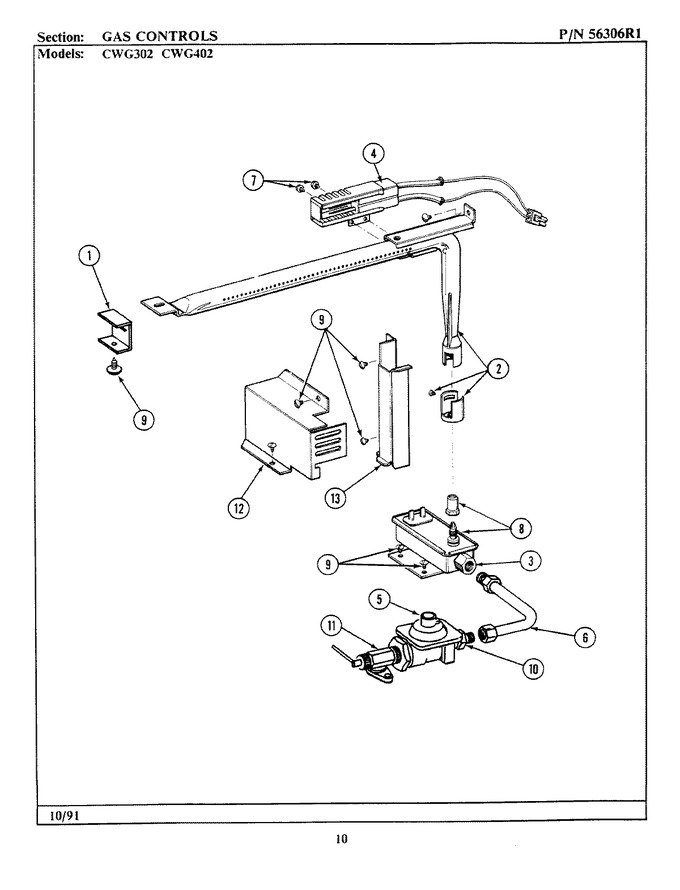

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F295-51 | Support, Oven Brnr-f | 00 |
|
- | ||||
| 2 | 3403A008-45 | Burner, Oven Assy | 00 |
|
- | ||||
| 3 | 1555251 | Nut, Loxit (3/8``) | 00 |
|
- | ||||
| 4 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 00 |
|
Immediately | $ 60.44 | |||
| 4 | 12400035 | Igniter, Oven (Replaces: 7432P067-60) | 07 |
|
Immediately | $ 60.44 | |||
| 5 | 7510P037-60 | Regulator, Pressure (nat) | 05 |
|
- | ||||
| 5 | 7510P022-60 | Regulator Pressure | 00 |
|
- | ||||
| 6 | 3414F095-44 | Tubing, Safety 8`` | 05 |
|
- | ||||
| 6 | 3414F043-44 | Tubing (3/8``) | 00 |
|
- | ||||
| 7 | WP7101P126-60 | Screw, No.10a X 1/2 (Replaces: 7101P178-60) | 00 |
|
Immediately | $ 6.85 | |||
| 8 | 7109P019-60 | Washer | 00 |
|
- | ||||
| 8 | 7501P113-60 | Valve, Oven | 09 |
|
- | ||||
| 8 | 7501P048-60 | Valve, Oven | 00 |
|
- | ||||
| 9 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 00 |
|
$ 6.77 | ||||
| 10 | 7507P059-60 | Fitting | 00 |
|
- | ||||
| 11 | 7501P041-60 | Valve, Shut Off | 00 |
|
- | ||||
| 12 | 4005F221-51 | Cover, Fuse | 00 |
|
- | ||||
| 12 | 4005F335-51 | Cove Fuse | 07 |
|
- | ||||
| 13 | 3830F002-45 | Raceway, Wire | 00 |
|
- |
