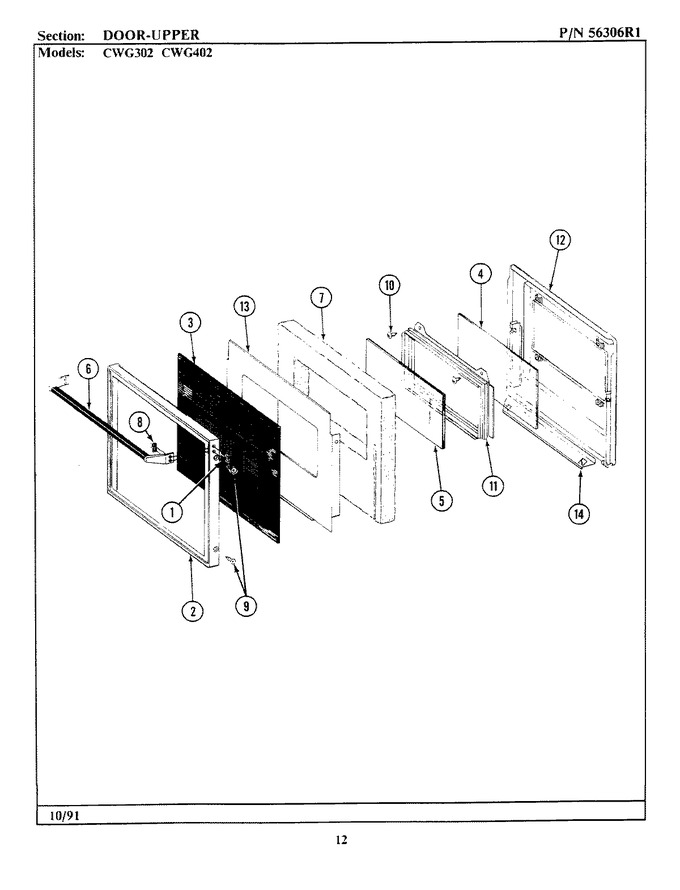

05 - Door-upper
06 - Gas Controls
07 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7101P131-60 | Screw | 00 |
|
$ 5.81 | ||||
| 2 | 7706P242-60 | Frame, Door | 00 |
|
- | ||||
| 3 | 7902P237-60 | Glass, Oven Door Out | 00 |
|
- | ||||
| 4 | 7902P243-60 | Glass, Oven Door Ins | 00 |
|
- | ||||
| 5 | 7902P245-60 | Glass, Oven Door Cen | 00 |
|
- | ||||
| 6 | 7701P036-60 | Handle, Door | 00 |
|
- | ||||
| 7 | 7002P058-60 | Insulation, Oven Door | 00 |
|
- | ||||
| 8 | M0282005 | Nut, 6-32 (Replaces: 7103P104-60) | 00 |
|
$ 7.07 | ||||
| 9 | 7101P154-60 | Screw, Ph Flat Hd | 00 |
|
- | ||||
| 10 | 7101P183-60 | Screw, Sl Hex | 00 |
|
- | ||||
| 11 | 3603F023-70 | Frame, Window | 00 |
|
- | ||||
| 12 | 2402W107-15 | Lining - Oven Door | 00 |
|
- | ||||
| 12 | 2402W107-23 | Lining Assy, Ov Dr | 08 |
|
- | ||||
| 13 | 3601F140-32 | Baffle, Door | 00 |
|
- | ||||
| 14 | 3804F072-51 | Retainer, Insulation | 00 |
|
- |
