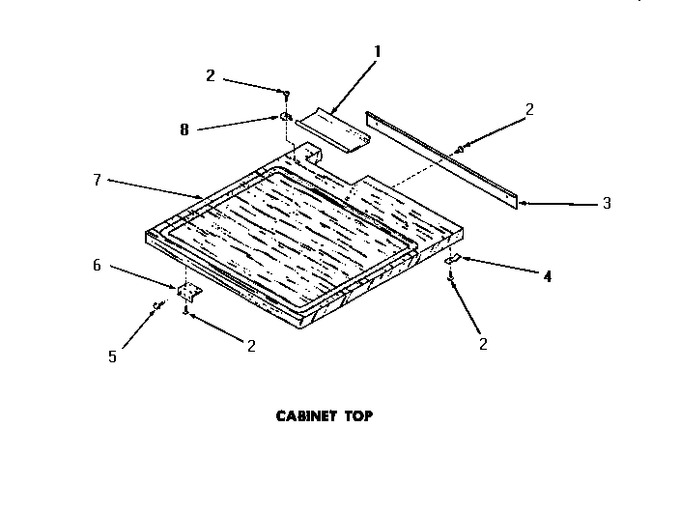

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110150		Access Cover		Appelez-nous	-
2	Y0055108		Button, Push, Start		Appelez-nous	-
3	M110170		Backguard		Appelez-nous	-
4	M110171		Clip		Appelez-nous	-
5	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
6	M110060		Top Hold-down Bracket		Appelez-nous	-
7	M110172		Cabinet Top		Appelez-nous	-
8	M110151		Hinge Xreplace		Appelez-nous	-
	NOTE:		Tub Inc: 20376 Nut(2), 81108 O-ring(4), 81120 Screw(2), 90690 Washer, 91163 Screw(2), M110015 Gskt, M110016 Gskt, M110045 Gskt, M110059 Gskt Clip(2), M110145		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
