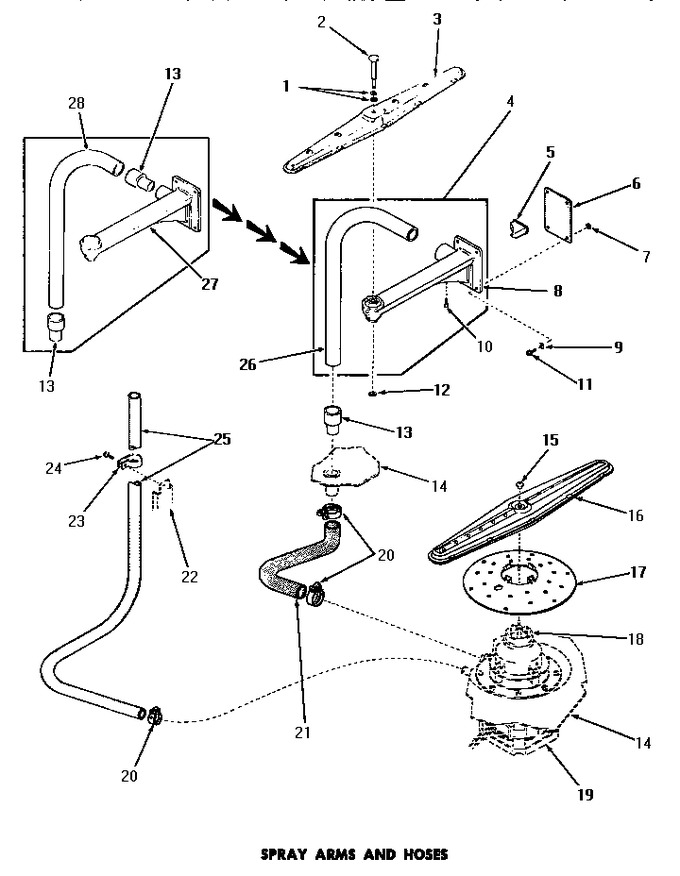

15 - Spray Arms & Hoses


16 - Tub, Gasket, Float Switch & Heating Elem


17 - Wetting Agent Dispenser


18 - Wires & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110143		Washer,brass Xreplace		Appelez-nous	-
2	M110038		Spindle,spray Arm Xreplace		Appelez-nous	-
3	M110037		Arm,spray-upper Xreplace		Appelez-nous	-
4	286P3		Arm & Tube Xreplace		Appelez-nous	-
5	M110035		Delivery Arm Plug		Appelez-nous	-
6	M110036		Gasket Xreplace		Appelez-nous	-
7	Y81108		O-ring		Appelez-nous	-
8	M110267		Arm,delivery Xreplace		Appelez-nous	-
9	M110145		Washer,rubber Xreplace		Appelez-nous	-
10	M110266		Screw Xreplace		Appelez-nous	-
11	WP489464		Hex Head Screw   (Replaces: 23628)			Immediately	$ 7.05
12	M110042		Ring,retaining Xreplace		Appelez-nous	-
13	M110040		Adapter Xreplace		Appelez-nous	-
14	Y00000000		See Note Tub		Appelez-nous	-
15	M110031		Nut,spray Arm Xreplace		Appelez-nous	-
16	M110030		Arm,spray-lower Xreplace		Appelez-nous	-
17	M110029		Cover,sump Xreplace		Appelez-nous	-
18	Y00000000		See Note Pump		Appelez-nous	-
19	Y00000000		See Note Motor		Appelez-nous	-
20	80478		Hose Clamp		Appelez-nous	-
21	M110247		Hose		Appelez-nous	-
22	Y00000000		See Note Side Channel		Appelez-nous	-
23	M110144		Hose Clamp		Appelez-nous	-
24	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
25	M110041		Drain Hose		Appelez-nous	-
26	M110268		Tube,supply Xreplace		Appelez-nous	-
27	M110034		Arm & Tube Xreplace		Appelez-nous	-
28	M110032		Tube,supply Xreplace		Appelez-nous	-
