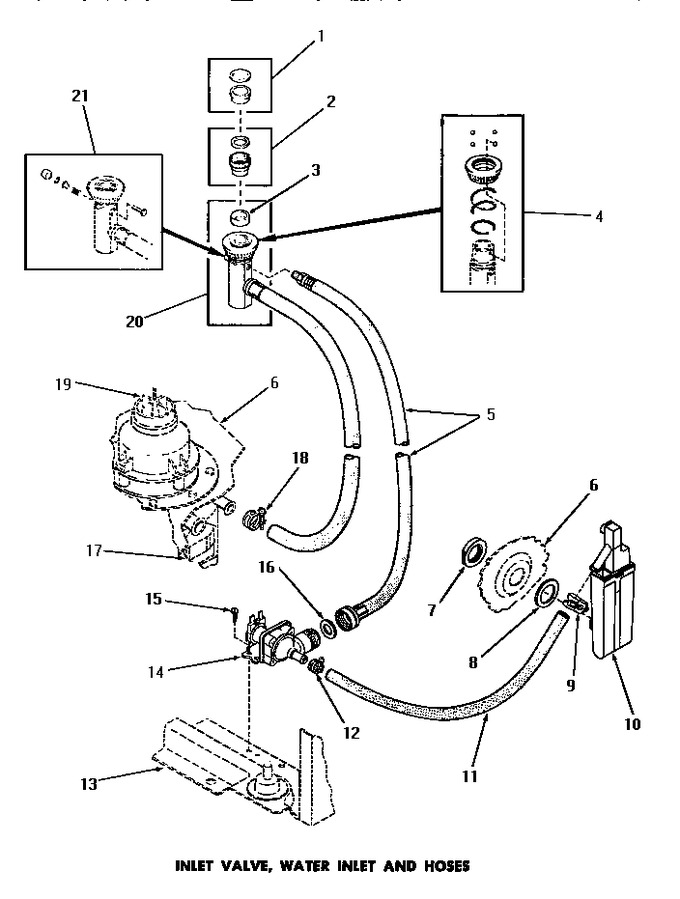

07 - Inlet Valve, Water Inlet & Hoses


08 - Loading Door & Access Panel


09 - M110063 Door Latch


10 - M110204 Door Latch


11 - Motor, Relay & Pump Body


12 - Power Cord & Reel


13 - Pump Impeller & Diffuser Kit


14 - Racks


15 - Spray Arms & Hoses


16 - Tub, Gasket, Float Switch & Heating Elem


17 - Wetting Agent Dispenser


18 - Wires & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65067		Adapter		Appelez-nous	-
2	65069		Nipple,snap		Appelez-nous	-
3	M110161		Sleeve,rubber Xreplace		Appelez-nous	-
4	255P3		Kit,collar Repair		Appelez-nous	-
5	M110163		Hose,inlet Xreplace		Appelez-nous	-
6	Y00000000		See Note Tub		Appelez-nous	-
7	M110111		Nut		Appelez-nous	-
8	M110112		Washer Xreplace		Appelez-nous	-
9	24904		Clamp		Appelez-nous	-
10	M110110		Inlet,water Xreplace		Appelez-nous	-
11	M110109		Tube,inlet Xreplace		Appelez-nous	-
12	24904		Clamp		Appelez-nous	-
13	Y00000000		See Note Cabinet		Appelez-nous	-
14	65012		Inlet Valve		Appelez-nous	-
15	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
16	20290		Washer, 19/32 Idx1.031		Appelez-nous	-
17	Y00000000		See Note Motor		Appelez-nous	-
18	80478		Hose Clamp		Appelez-nous	-
19	Y00000000		See Note Pump		Appelez-nous	-
20	M110162		Hose,coupler & Drain Xreplace		Appelez-nous	-
21	256P3		Relief Valve Repair Kit		Appelez-nous	-
