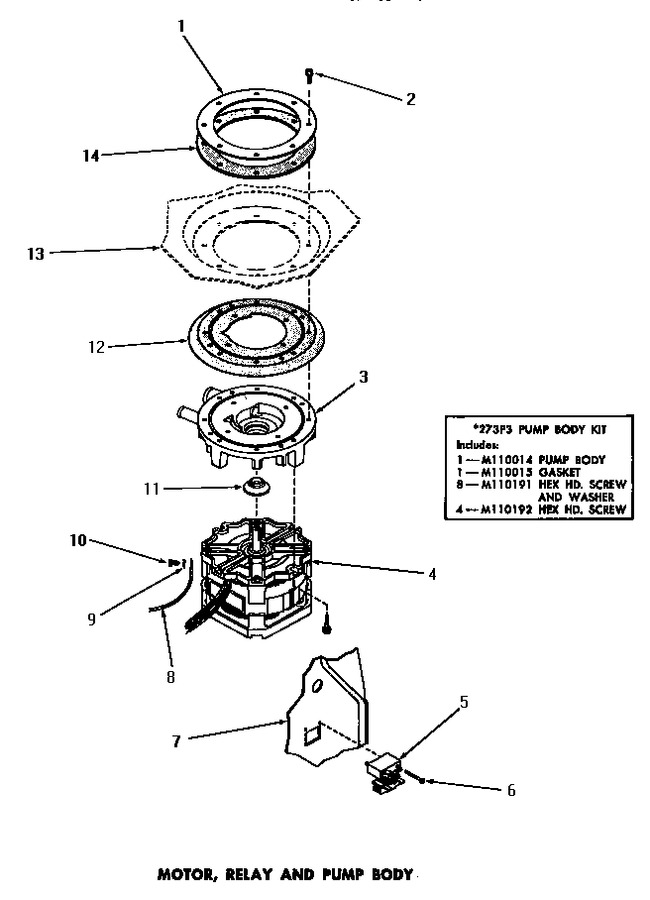

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110017		Cover Xreplace		Appelez-nous	-
2	M110191		Screw & Washer-hx Hd Xreplace		Appelez-nous	-
2	M110044		Screw & Washer-hx Hd Xreplace		Appelez-nous	-
3	273P3		Kit,pump		Appelez-nous	-
3	M110014		Kit,pump Xreplace		Appelez-nous	-
4	M110010		Motor Xreplace		Appelez-nous	-
5	M110011		Relay Xreplace		Appelez-nous	-
6	M110139		Phillips Head Screw		Appelez-nous	-
7	Y00000000		See Note Hinge Weldment		Appelez-nous	-
8	Y00000000		See Note Ground Wire		Appelez-nous	-
9	Y20278		Lockwasher		Appelez-nous	-
10	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
11	M110012		Slinger Xreplace		Appelez-nous	-
12	M110015		Gasket Xreplace		Appelez-nous	-
13	Y00000000		See Note Tub		Appelez-nous	-
14	M110016		Gasket Xreplace		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
