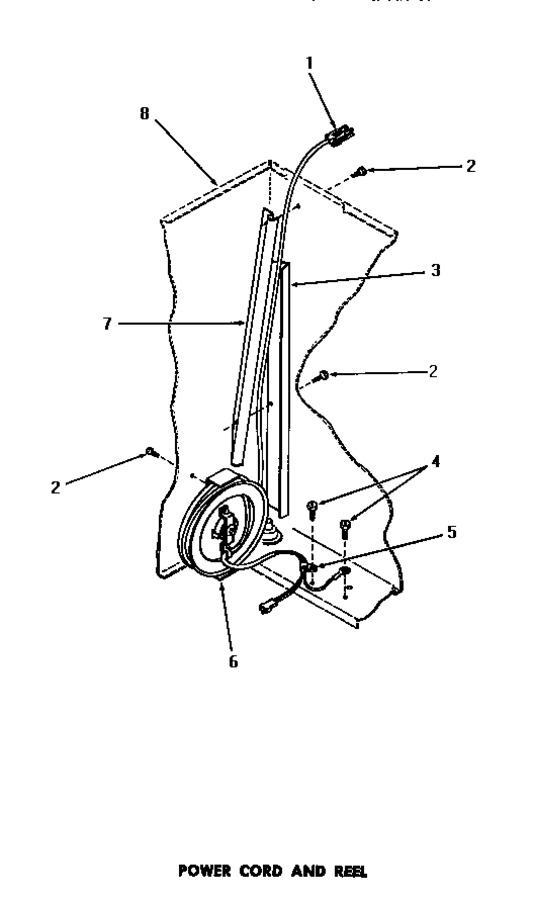

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110241		Power Cord		Appelez-nous	-
2	Y0055108		Button, Push, Start		Appelez-nous	-
3	M110166		Hose Guard		Appelez-nous	-
4	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
5	Y20308		Wire Clip		Appelez-nous	-
6	M110164		Power Cord And Reel Assembly		Appelez-nous	-
7	M110165		Power Cord Guide		Appelez-nous	-
8	Y00000000		See Note Cabinet		Appelez-nous	-
