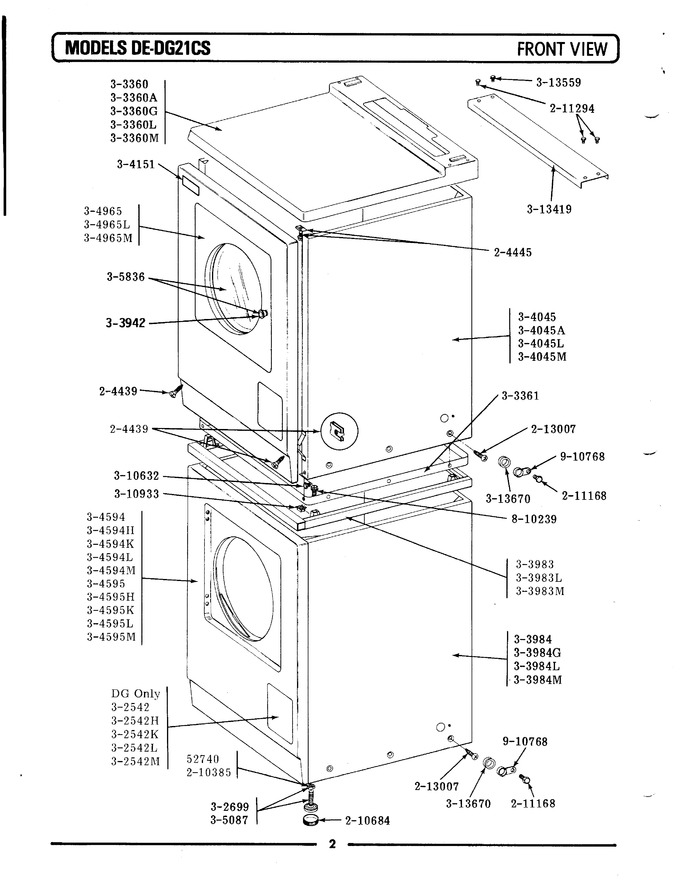

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 003 | 204445 | Screw & Fastener Asy. | 00 |
|
- | ||||
| 004 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 005 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 006 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 007 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 008 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 009 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 010 | NLA | Top Cover-white | 00 |
|
- | ||||
| 011 | Y303361 | Base Assy. | 00 |
|
- | ||||
| 012 | NLA | Spacer Assm-white | 00 |
|
- | ||||
| 013 | NLA | Cabinet-white | 00 |
|
- | ||||
| 014 | 304045 | Cabinet-white | 00 |
|
- | ||||
| 015 | NLA | Name Plate On Control Panel | 00 |
|
- | ||||
| 016 | NLA | Front Panel-white | 00 |
|
- | ||||
| 017 | 304965 | Door Complete-white | 00 |
|
- | ||||
| 018 | WP8563585 | Adjustable Leg And Nut (Replaces: Y305087) | 00 |
|
Immediately | $ 13.28 | |||
| 019 | NLA | Inner Door With Knob & Scre | 00 |
|
- | ||||
| 020 | NLA | Knob And Screw | 00 |
|
- | ||||
| 021 | Y310632 | Screw | 00 |
|
- | ||||
| 022 | 310933 | Fastener | 00 |
|
- | ||||
| 023 | NLA | Cover Plate For Top Cover | 00 |
|
- | ||||
| 024 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 025 | 33001303 | Grommet, Strip | 00 |
|
- | ||||
| 026 | NLA | Screw | 00 |
|
- | ||||
| 027 | 910768 | Cable Strap-harness To Base | 00 |
|
- |
