SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Control Center Shroud

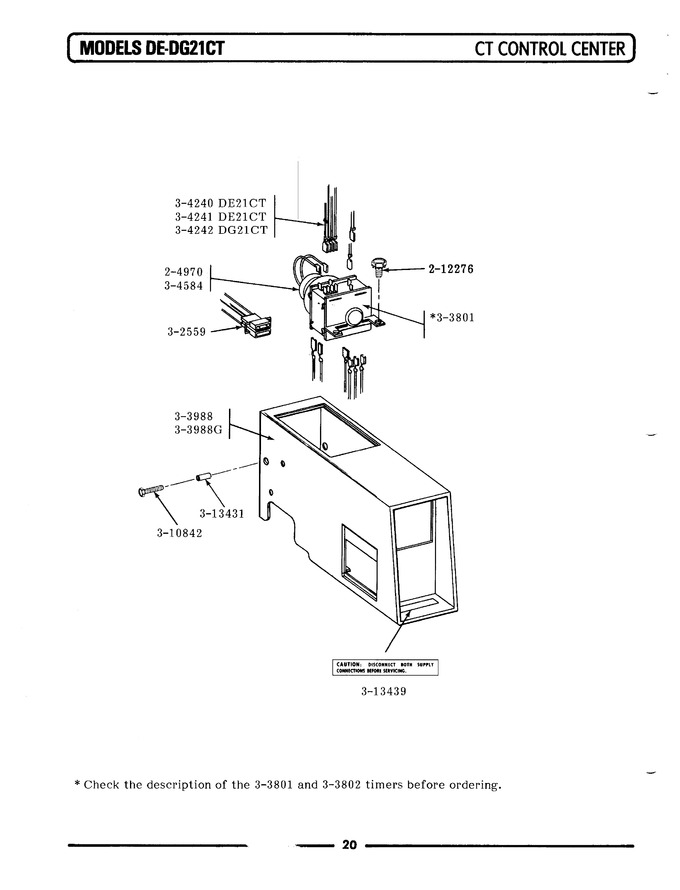

04 - Control Center


05 - Control Center Components


06 - Door Assembly


07 - Front Panel-rear View


08 - Front Panel\door


09 - Front Panel\door (series 02)


10 - Tumbler Front\lint Screen


11 - Lint Screen, Tumbler (front & Back)


12 - Inlet Duct & Heater Assembly


13 - Motor, Blower, Base Frame & Thermostats


14 - Installation Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	204970		Timer Motor 120-60 Rpr	00	Appelez-nous	-
002	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
003	Y302559		Harness For Timer	00	Appelez-nous	-
004	Y303801		Timer With Knob And Pin	00	Appelez-nous	-
005	NLA		Outer Case-white	00	Appelez-nous	-
006	NLA		Wire Harness-upper	00	Appelez-nous	-
007	NLA		Wire Harness-lower	00	Appelez-nous	-
008	NLA		Timer Motor	00	Appelez-nous	-
009	Y310842		Screw	00	Appelez-nous	-
010	NLA		Spacer For Vault	00	Appelez-nous	-
011	Y313439		Instruction Label	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
