SELECT A DIAGRAM

01 - Front View


02 - Rear View


03 - Control Center Shroud


04 - Control Center


05 - Control Center Components


06 - Door Assembly


07 - Front Panel-rear View


08 - Front Panel\door


09 - Front Panel\door (series 02)

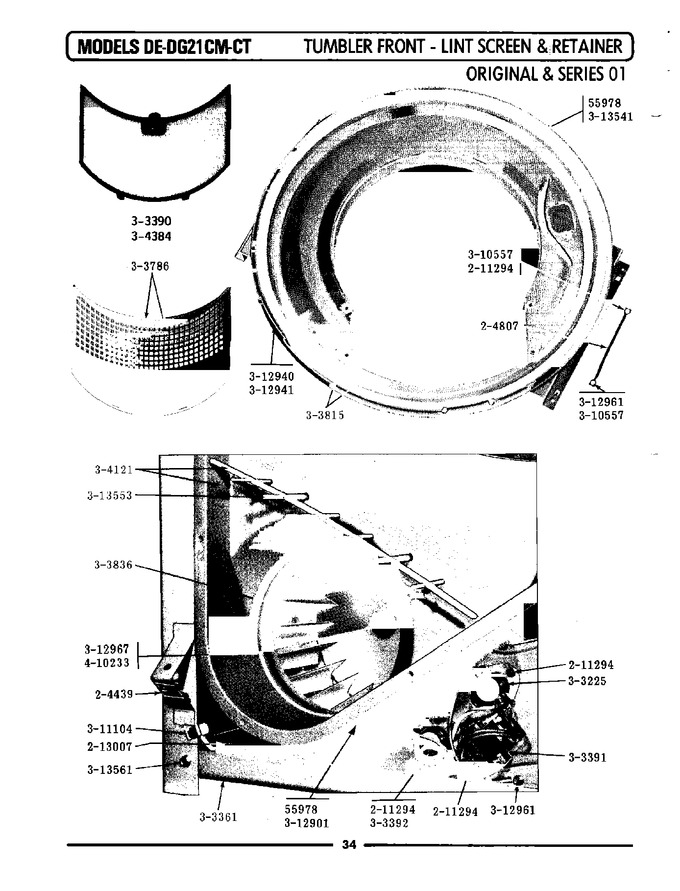

10 - Tumbler Front\lint Screen


11 - Lint Screen, Tumbler (front & Back)


12 - Inlet Duct & Heater Assembly


13 - Motor, Blower, Base Frame & Thermostats


14 - Installation Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y055978		Rubber Adhesive, 2 Oz Tube	00			$ 38.40
002	204439		Screw & Fstner Assy(frt.panel)	00			$ 8.80
003	204807		Grnd.wire,supp.plte To Top Cvr	00	Appelez-nous	-
004	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
005	213007		Screw, Cabinet	00			$ 10.99
006	Y303361		Base Assy.	00	Appelez-nous	-
007	Y303390		Lint Screen	01	Appelez-nous	-
008	WP33303391		Cycling Thermostat 155 Deg---s   (Replaces: Y303391)	00			$ 127.00
009	WP694674		Cycling Thermostat 140 Deg.   (Replaces: 303392)	00		Immediately	$ 45.46
010	Y303786		Lint Screen With Retainer	00	Appelez-nous	-
011	Y303815		Tumbler Front----sub	00	Appelez-nous	-
012	Y303836		Blower Wheel Assembly & Clamp	00		Immediately	$ 32.35
013	NLA		Outlet Grid And Duct	00	Appelez-nous	-
014	WP33001003		Lint Screen---s   (Replaces: Y304384)	02		Immediately	$ 43.47
015	Y304810		Outlet Duct Assembly---s	00	Appelez-nous	-
016	310557		Washer	00	Appelez-nous	-
017	NLA		Harness Clip	00	Appelez-nous	-
018	WPY312901		Seal, Blower   (Replaces: Y312901)	00			$ 60.70
019	306508		Bearing Pad F/tumbler Front   (Replaces: 312940)	00		Immediately	$ 20.77
020	306508		Bearing For Tumbler Front   (Replaces: 312941)	00		Immediately	$ 20.77
021	WPW10116751		Screw   (Replaces: Y312961)	00			$ 6.74
022	WP312967		Clamp, Blower Housing   (Replaces: 312967)	00		Immediately	$ 10.68
023	WP33313541		Tumbler Seal -----s   (Replaces: Y313541)	00		Immediately	$ 54.49
024	NLA		Grid For Outlet Duct	00	Appelez-nous	-
025	Y313561		Screw----na	00			$ 5.27
026	Y313794		Outlet Grid And Duct ---s	02	Appelez-nous	-
027	Y313795		Guide For Lint Screen	02	Appelez-nous	-
028	Y313796		Lint Seal	02			$ 5.85
029	WP9703438		Ring, Retaining   (Replaces: 410233)	00		Immediately	$ 3.81

    View Diagram in Separate Window       Print Part List
